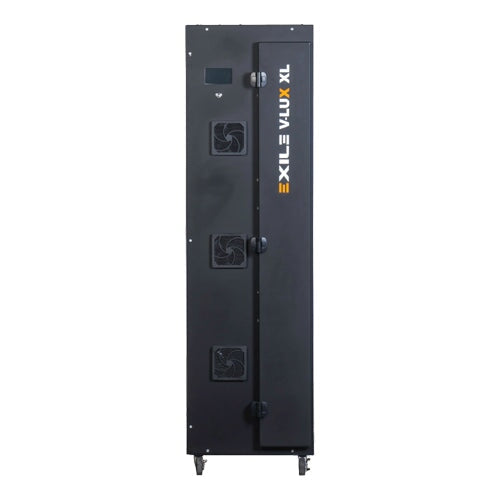

Exile V-Lux Exposure Unit
NEW ARRIVAL

Exile Technologies  |  SKU: EUPO-VLUX-XL
Model
$14,000.00
215.48 lb
Flat rate
multi-qty message
In stock
DESCRIPTION

The unique vertical design of the Exile V-Lux Exposure unit allows for simple and easy loading and unloading of a screen, using integrated rails to maintain the proper exposure distance from the LED light source. The unit is built with computer-to-screen in mind and, when combined with EXILE’s Spyder system, ensures high-quality results. Just insert the screen, press a button (or use automated mode), and your screen is exposed with the correct spectrum of UV light.

FEATURES AND BENEFITS
  • Designed for computer-to-screen
  • Lamp life of 50,000 hours or more
  • Optimized UV-LEDs for low energy consumption
  • LCD Touch Screen for fully automatic or manual operation
V-LUX SPECIFICATIONS
  • Power Requirements: Auto Switching 110 VAC/220 Auto Switching 110 VAC/220 VAC, 50/60 Hz, 650W Max VAC, 50/60 Hz, 1300W Max
  • Operating Temperature: 50°F – 95°F (10°C – 35°C) 50°F – 95°F (10°C – 35°C)
  • Storage Temperature: 40°F – 122°F (5°C – 50°C) 40°F – 122°F (5°C – 50°C)
  • Operating Humidity: 35% – 75% Non-Condensing 35% – 75% Non-Condensing
  • Operating Mode: Auto/Manual On/Off Auto/Manual On/Off Exposure Setup: 4.3”
  • Color Resistive 4.3” Color Resistive Touch LCD Touch LCD
  • V-Lux Dimensions: 35.25” x 16” x 51” (895 mm x 406 mm x 1295 mm) | Weight: 100 lbs (45.36 kg)
  • V-Lux XL Dimensions: 62” x 18” x 64” (1574 mm x 457 mm x 1625 mm) | Weight: 230 lbs (104.32 kg)
PRODUCT DATA SHEETS
ABOUT EXILE TECHNOLOGIES

Exile Technologies is a company specializing in the development and manufacturing of imaging equipment and software solutions for the prepress and screen printing industries. Founded in 1987, the company is known for its high-quality products such as direct-to-screen (DTS) imaging systems, thermal imaging systems, and film printers. Exile Technologies serves a global market, offering solutions that enhance productivity and precision in screen printing, offset printing, and other graphic arts applications.
