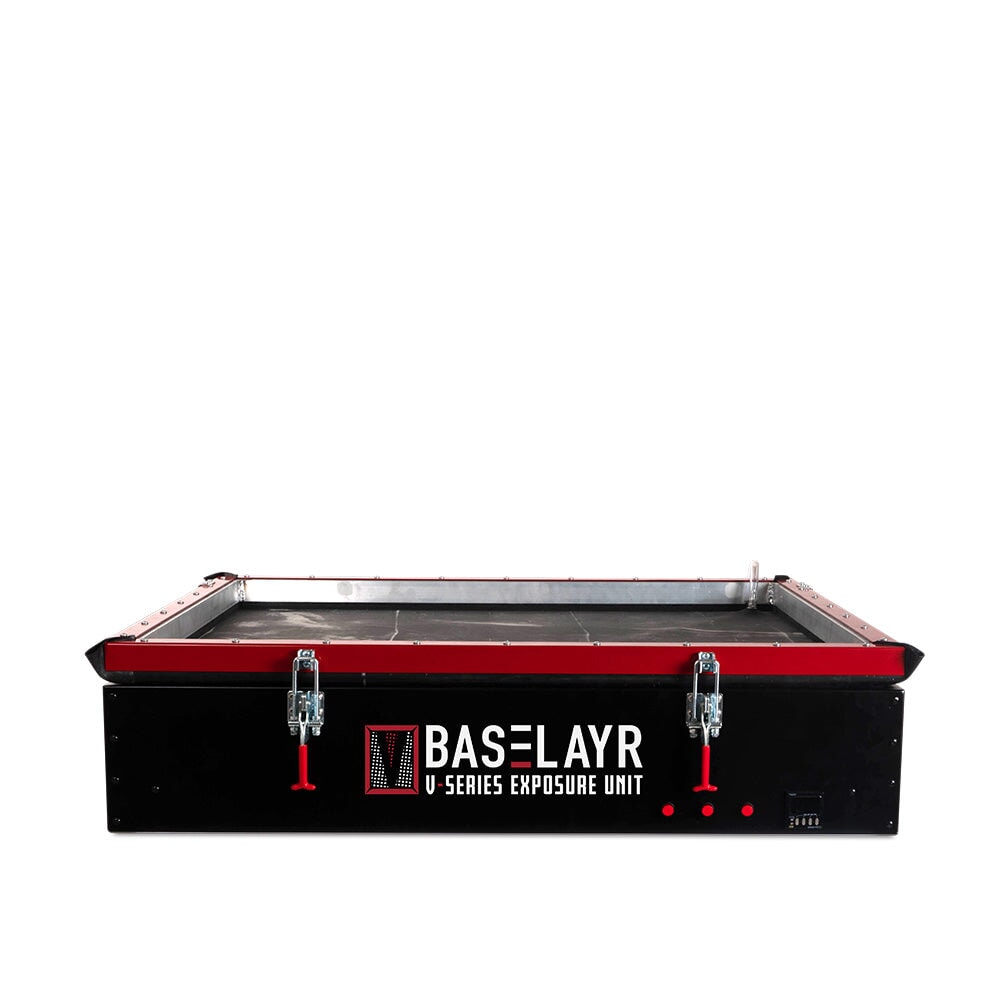

BASELAYR V2331 LED Exposure Unit - 23x31in

STAFF PICK

MADE IN USA 🇺🇸

Name: BASELAYR V2331 LED Exposure Unit - 23x31in
Brand: Baselayr
SKU: EUPO-V2331
Price: 2899.95 USD
Availability: InStock
Rating: 4.86 (7 reviews)

Baselayr | SKU: EUPO-V2331

$2,899⁹⁵

Earn 8700 points towards Member Rewards. As low as $78/month with

120.0 lb

Est. delivery by: Monday, Apr 14th

Ships for $320 in Contiguous US. Additional shipping charges apply.

multi-qty message

In stock

DESCRIPTION

You demand excellence from your screen printing supplies and equipment. To burn screens with confidence, you need an exposure unit with LED bulbs and a vacuum. The V-Series LED Exposure Units deliver consistent, detailed exposures faster than ever, with less ongoing costs.

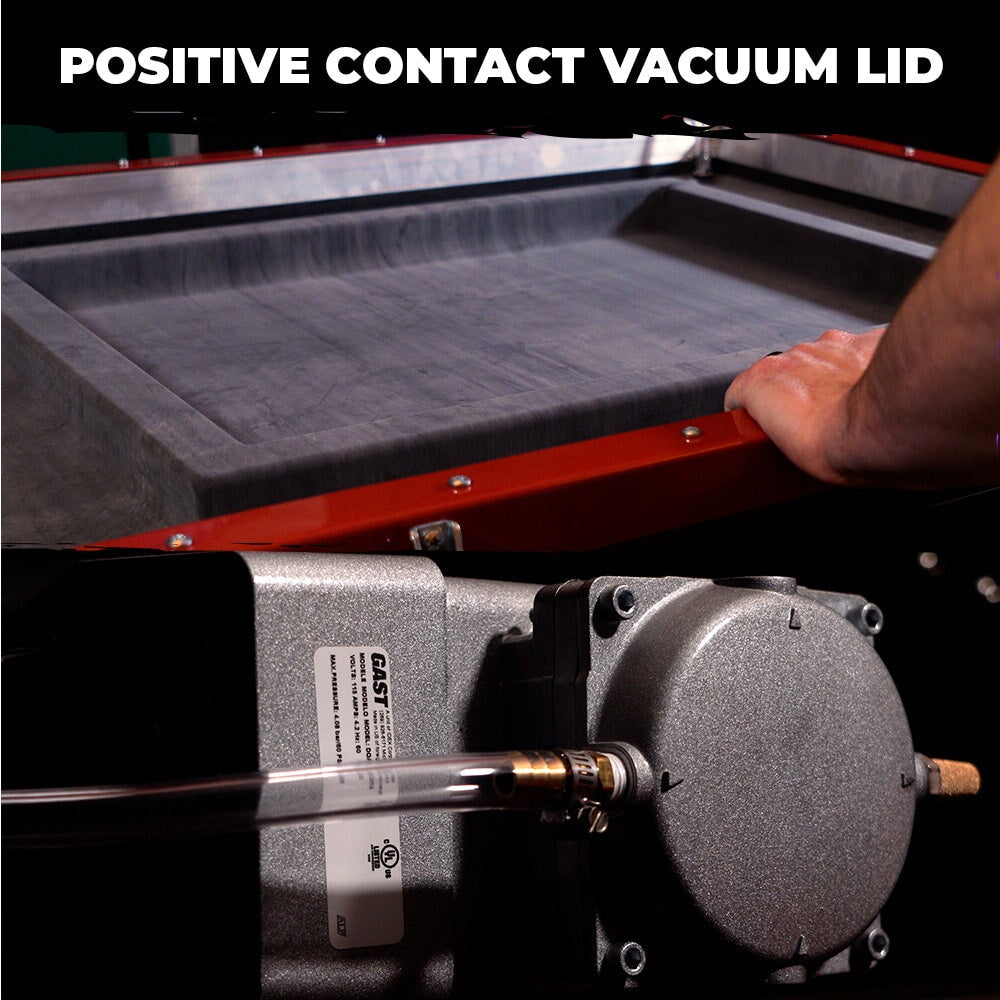

The purpose of the vacuum is to create the tightest positive contact between the glass, film, and emulsion. Having tight, strong contact to the point where the black ink on the film is firmly against the emulsion means that light has difficulty wrapping around the film. The end result — a straight, clean burn with sharp edges. Vacuum units provide a superior tool for creating detailed image resolution.

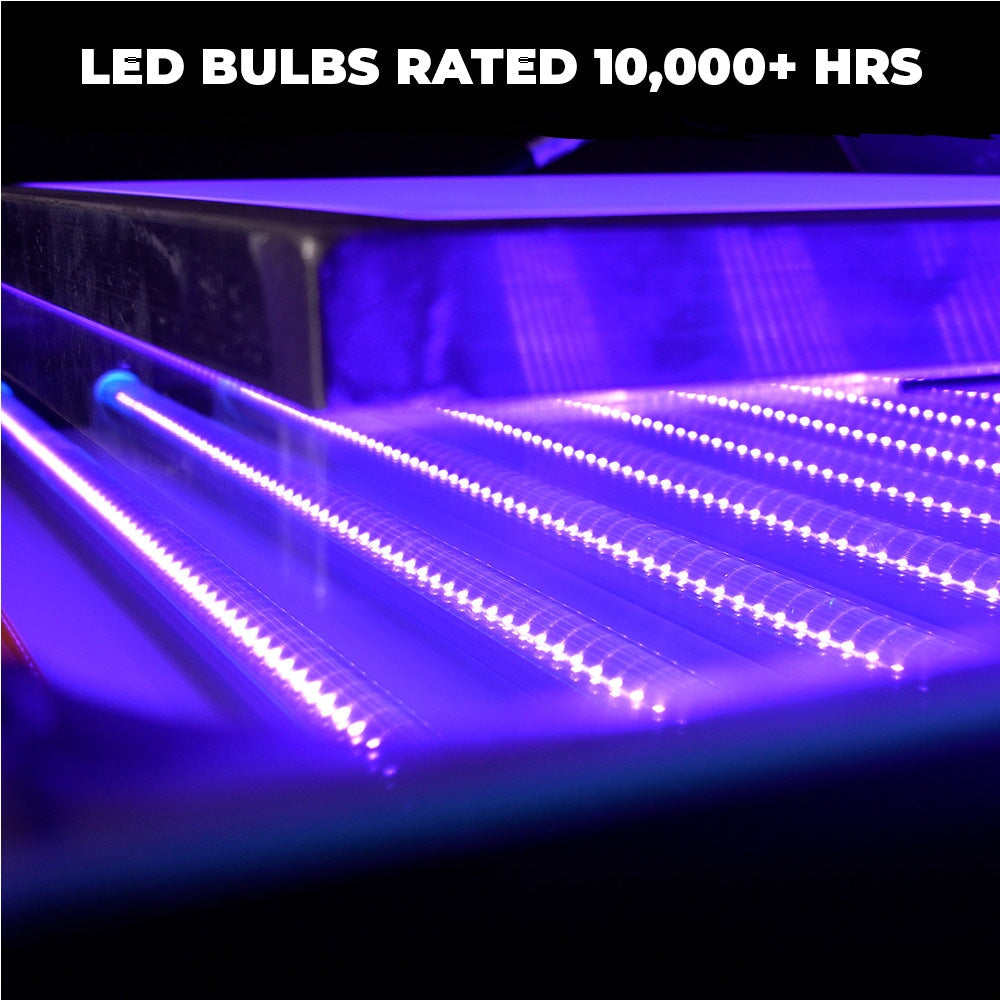

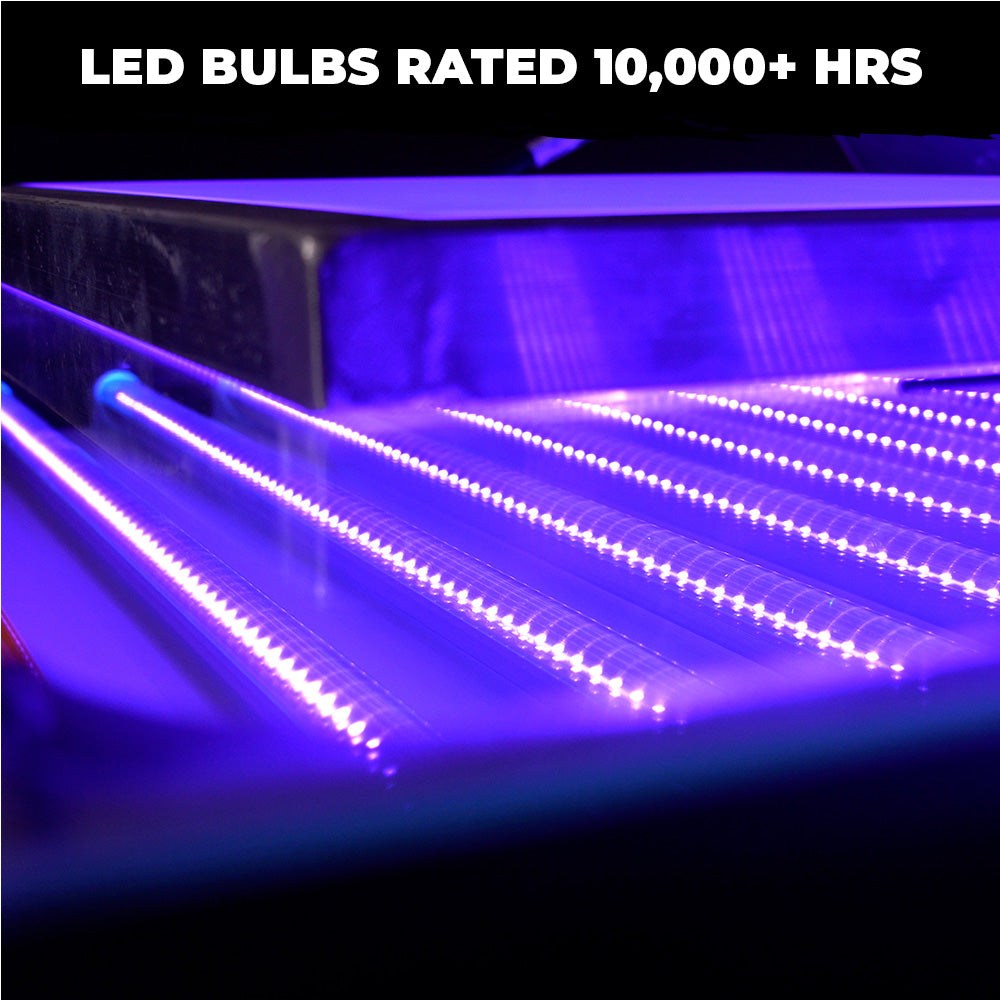

The V2331 uses a custom, high-output LED bulbs manufactured for exposure units. The LED bulbs output an optimal UV wavelength, which can be used on all types of emulsion. Printers can rest assured that the LED bulbs will last more than 10,000 hours, which is better for the printer and the environment.

The optically clear, tempered glass in the V-Series allows more than 99% of the UV light through without disruption to the wavelength. The unit also features two, light-safe, T8 LED Amber inspection bulbs, doubling the use of the exposure unit as a screen inspection table. The V-Series is designed to perform.

Everything starts and ends in the darkroom. Build a solid foundation from the screen up with the V2331 today.

BROWSE THE BASELAYR EQUIPMENT CATALOG

FEATURES:

LED 405nm bulb technology
Digital timer for accuracy
Sturdy powder-coated steel construction
EC power cord with easy access to an on/off switch
Flexible and durable rubber vacuum blanket
Heavy-duty gas shocks
Adjustable vacuum lid clamps
Optically clear, strong tempered glass

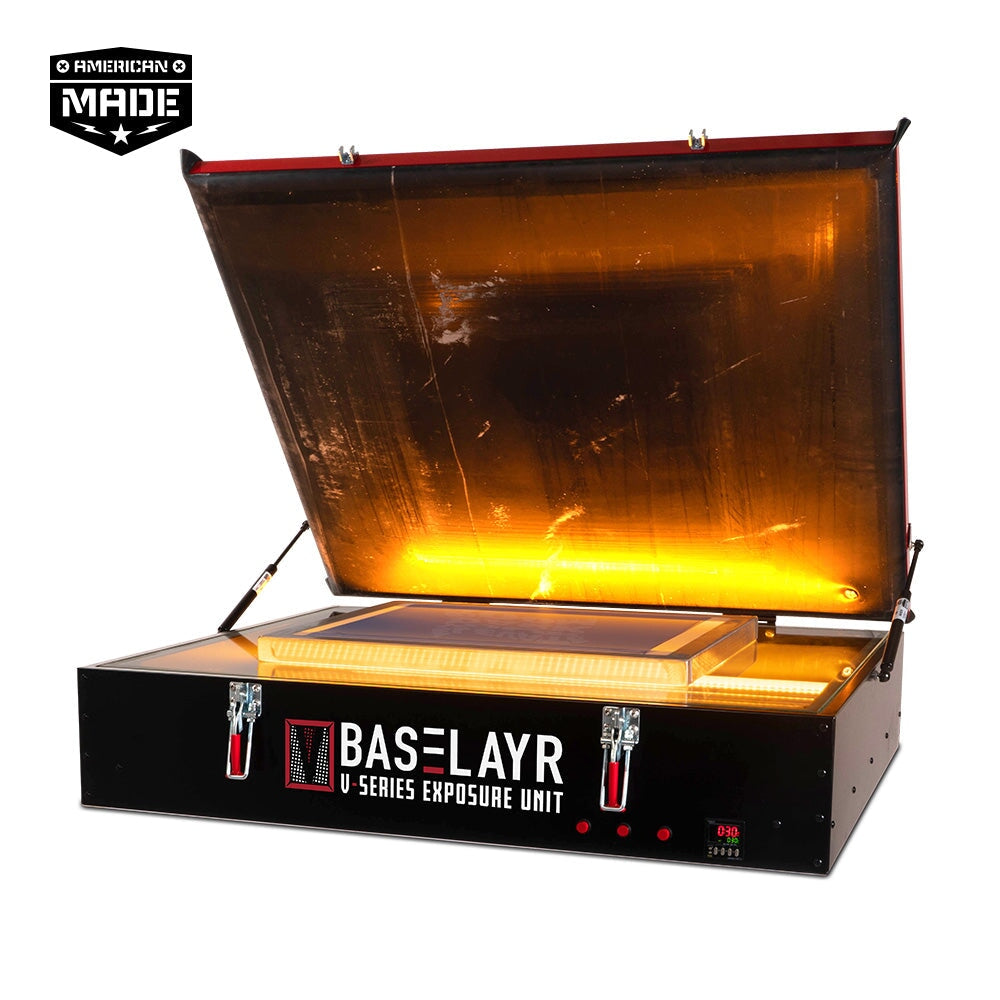

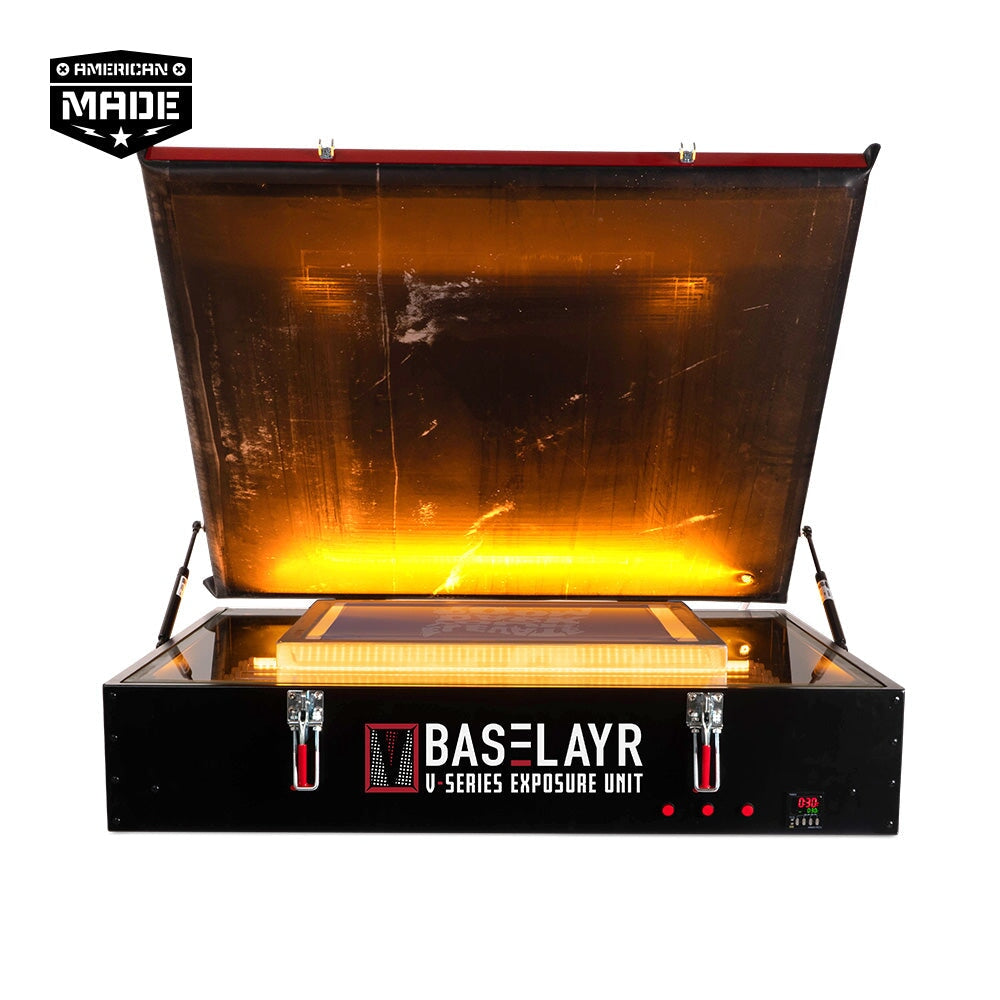

Two, light-safe T8 LED amber inspection bulbs

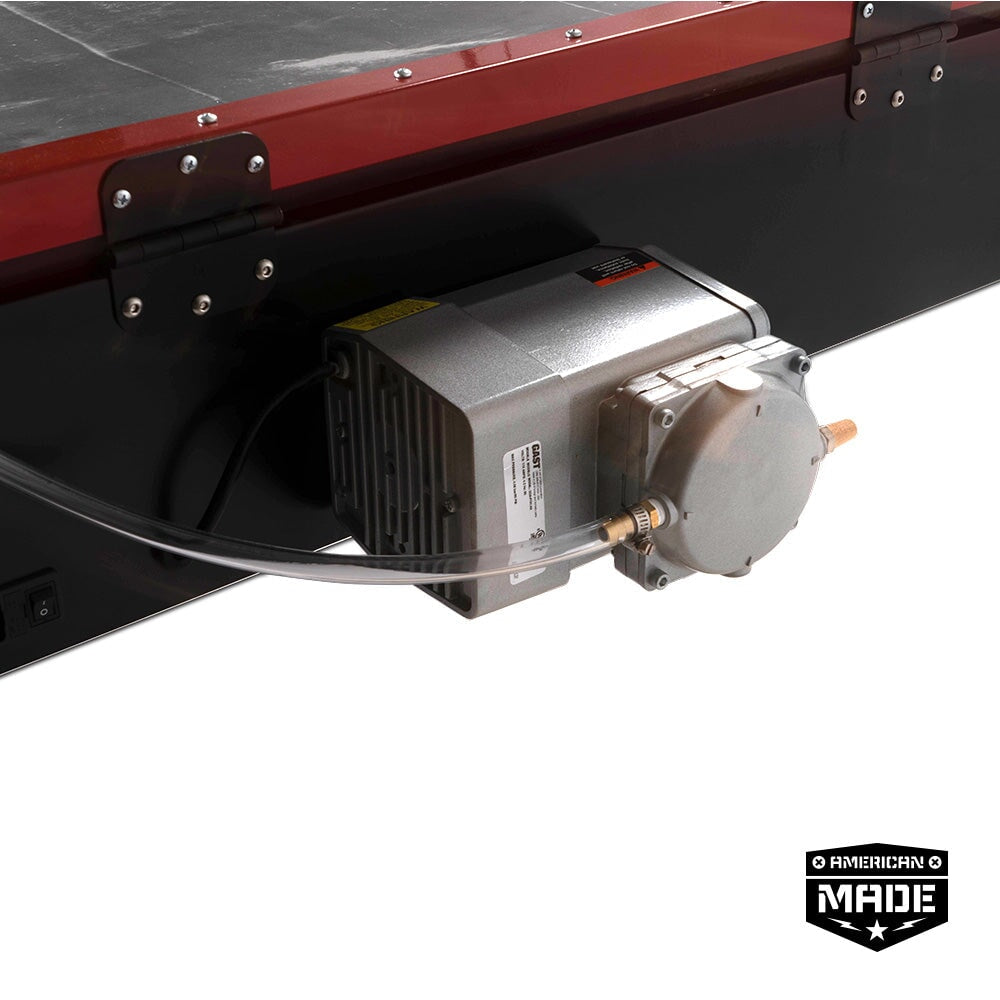

Oil-free vacuum pump
Includes nylon rope to allow air movement between the blanket and frame
Three-year limited warranty (please refer to the manual for more details)
Made in USA 🇺🇸

BENEFITS:

The vacuum lid creates the tightest positive contact between the glass, film, and emulsion to produce stencils with clean, sharp edges
LED light sources exposes screens quickly; enhances the amount/levels of possible details captured; and creates a harder, more durable stencil
LED bulbs consume less energy and last more than 10,000 hours, so you don’t have to replace them as often

INCLUDED:

PRODUCT SPECS:

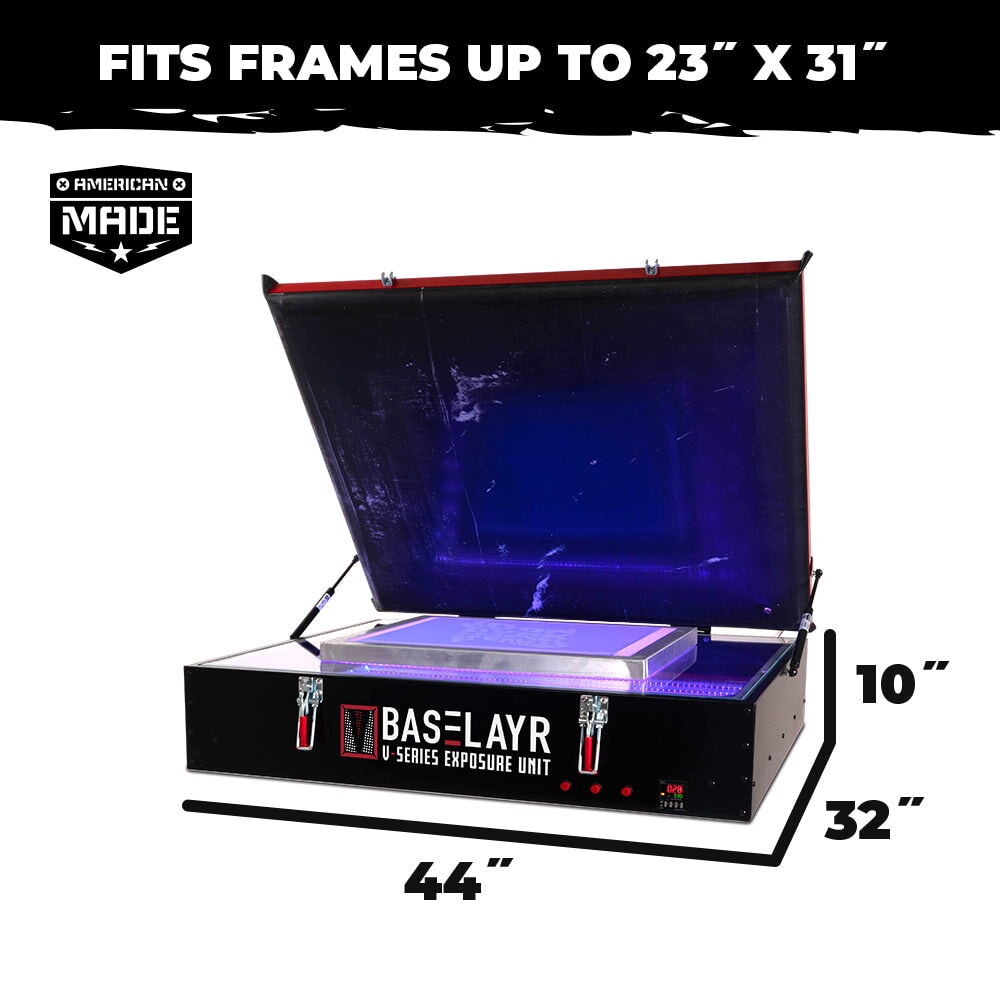

Unit dimensions: 44"(L) x 32"(W) x 10"(H)
Optical clear, tempered glass: 31" x 38"
Max frame size OD: 23" x 31"
8 UV T8 LED 405nm tube bulbs designed for screen exposure
Two, light-safe T8 LED Amber inspection bulbs with dedicated on/off switch
UV wattage: 320 watts
Voltage: 115v
Standard 110v 3-prong plug
Timer: Digital (1/10 sec. increments)
Control Panel and timer
Time adjustment
Timer on/off
Vacuum blanket on/off
Shipping dimensions: 40"(W) x 50"(L) x 12"(H)
Ship Weight: 150 lbs

PRODUCT DATA SHEETS

AMERICAN MADE & MADE TO LAST

EARN 3x REWARDS

Did you know you can earn rewards every time you shop at Screenprinting.com? For every dollar you spend, you’ll receive 3 reward points. It’s that simple. Think of it as a piggy bank for your apparel decoration goals. Save up your points and apply them toward your next piece of equipment—it’s an easy way to make your investment go further!

Learn More and Sign Up Here

Customer Reviews

4.9 Based on 7 Reviews

5 ★

86%

4 ★

14%

3 ★

2 ★

1 ★

Write a Review Ask a Question

Reviews
Questions

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

screen
unit
glass
Exposure unit
suction
video
quality
details
vacuum
vacuum button

12/26/2023

Jesse

United States

Everything you will ever need

I believe this exposure unit is all you will ever need it’s big enough for practically any screen u would use for any shirt and strong enough and consistent thru and thru. It captures all details in your design.If you are looking to buy an exposure unit that will last a life time and can handle any job this is the perfect exposure unit.

12/28/2023

ScreenPrinting.com

It really is what every printer should strive for! Thank you for your review!

09/16/2023

william A.

United States

BASLAYR V2331

The unit does a good job however I have issues with 2 items. #1 it does not have a on and off switch so I need to unplug it whenever it isn't in use for a long period of time. #2 the exposure button is so close to the latch I have inadvertently touched it and ruined several screens. Minor issues but they certainly should be addressed.

09/18/2023

ScreenPrinting.com

There's a switch on the back. there also should be some adjustment on the latch. Thank you for your review.

07/08/2023

Out E.

United States

Great but could be better

For the price this exposure is great but there are some caveats. As you can see there are 3 different buttons along with a control panel for your exposure time. When you hit the vacuum button it takes 46 seconds on a 23x31 screen and 35 seconds on a 20x24 screen to create a seal. Then you have to manually hit the exposure button to start the exposure, that means waiting the 46/35 seconds at the table in order to shut the vacuum off and expose the screen. It would be much more ideal if I could hit one button and walk to the washout booth, or even if this had 2 vacuums or a more powerful vacuum to cut the suction time in half. Could even make it so the vacuum turns it's self off, and by the time I get back from the washout booth I only have to hit the exposure which for me is 22 seconds using Saati PHU Red on a 230 hydromesh screen 1/1 coated. Lastly, the safelights are very bright, almost too bright and condensed in the position they are mounted. It would be better if they came off the side or weren't faced directly up to where you are staring at them. All in all, this is a huge upgrade from my old halogen bulb unit from ryonet with the turn dial and clamp/foam top, and for the price it can't really be beat. Oh, and don't forget to put the nylon rope up the vacuum tube a little bit and drape into your inkside of the screen as someone mentioned in another review, that is the only way you will get a full suction and isn't mentioned at all in the directions provided.

07/27/2023

ScreenPrinting.com

Hello! Thank you so much for the detailed review - we value your feedback! To keep the cost affordable, we do not add the "one button does it all" feature. However, it sounds like maybe something is making your suction go slower than it should. The rope does not go in to the suction hole but rather is just placed close to it. Please check out this video for more information. https://www.youtube.com/watch?v=OQ9qdIsNWyc and as always, feel free to reach out us if you ever have any questions or concerns. We are more than happy to help! Happy Printing to you!

06/30/2023

Andrew

United States

What a TANK!

The V2331 is a tank! The fit and finish, the welds, and the weight of this unit are spot on. It has a look and feel of quality from top to bottom. This unit is very well made and I know will last a very long time even with daily use. The value and bang for your buck are a 10/10. I know there are units on the market that offer a few more bells and whistles but if you can press the vacuum button on and off manually and save money, count me in! If you are looking to step up to a professional grade exposure unit with a vacuum top that will accommodate up to the auto frame size of 23x31 then this is your unit. Pro tip... this unit will work best if you take a little time and build a custom table for it to sit on. All you need are a few 2x4's and some 3/4 plywood. We did and it makes all the difference in the world. You will also receive a exposure guide which is a huge help in dialing in your exposure time, especially in the beginning. Pull the trigger, you will be glad you did!

07/27/2023

ScreenPrinting.com

Hey Andrew, Super stoked for you in taking your shop to the next level! Glad you like the V2331! Definitely a must in any size shop!

07/01/2022

Shane

United States

Fantastic Exposure Unit

Hello everybody, recording live from somewhere...... seriously though, this is a quality exposure unit. I've been screen printing for 6 years now and I've used it all. From Saati to NuArc/M&R to Ranar and AWT etc....and this exposure unit does just as good of a job exposing screens, if not better. Very impressed with the user friendliness as well, very straightforward. If you aren't an experienced screen printer though, the basic users guide it comes with definitely needs some help though. The best piece of advice I could give entry level printers is to make sure you stick about 2 to 3 inches of your little black rubber tubing "nylon" into the suction tube, directly over to your screen frame, you'll get incredible suction results. Much better than if you were to just drap it from screen to glass. This unit is half the cost or more than half the cost the other brands I mentioned, for the same or even better results. Screenprinting.com, please consider creating a more detailed user's guide for people, I truly believe that it would go a long way. Nonetheless, I highly recommend this unit.

07/14/2022

ScreenPrinting.com

Hi Shane, Thanks for reaching out and leaving us a rad review on the V2331 BASELAYR Exposure unit! It is awesome to hear how much you appreciate the quality of the equipment, we are grateful! Keep on Powering the PRINT!

Tim T. 06/11/2024

I'm having trouble with my new baselyar unit. As far as burning screens with fine lines. I can see the fine print in the screen but it will not wash out. Also just wondering how bright the led lights should be, because they are not very bright? Should they be to bright to look at? If so they are not. I had a ryonet in the past but bulbs kept going bad. So I went with led unit. Not happy so far. Any information would be great!

Answers (1)

ScreenPrinting.com 06/11/2024

Hi Tim! When it comes to exposing screens and all the variables involved, I would STRONGLY encourage you to give us a call so we can walk through the issues with you and find solutions that will work for you. (360) 576-7188 As for the visuals strength of the bulbs - this is an Ultra Violet light source, please do not look at it directly as your eyes can be damaged. As a result, they do not look as bright as Fluorescent or other bulb types. As for detail, with all things being equal in the dark room, you would be able to expose extremely fine details with this unit. We regularly hold 55 lpi simprocess films with this unit for our EDU classes. Hope this helps! -Chuggins

Justin B. 10/12/2021

is there room on this unit to put the Tri-lock system ??

Answers (1)

ScreenPrinting.com 10/12/2021

Hello Justin! We typically recommend the Y series exposure unit https://www.screenprinting.com/products/baselayr-y3942-led-exposure-unit for the standard TriLoc system - but it does depend on the measurements of the TriLoc system are you are looking to get?
