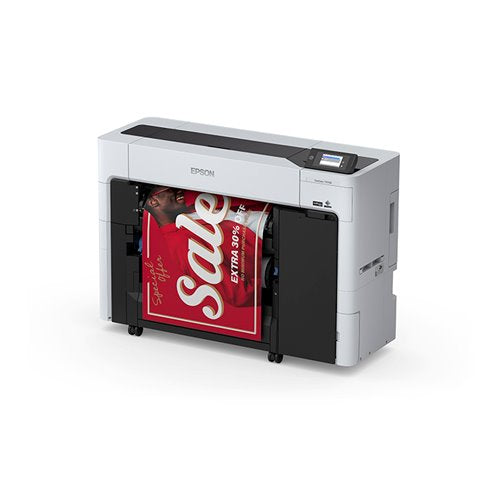

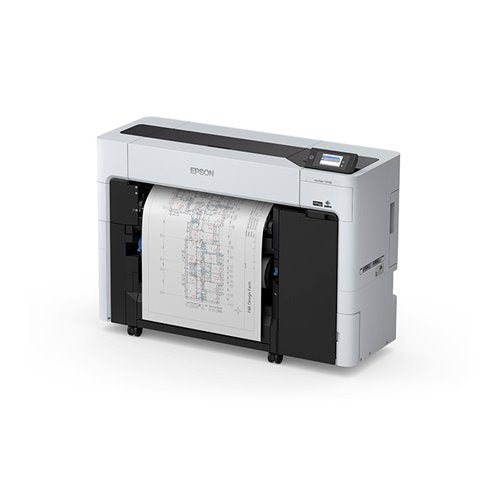

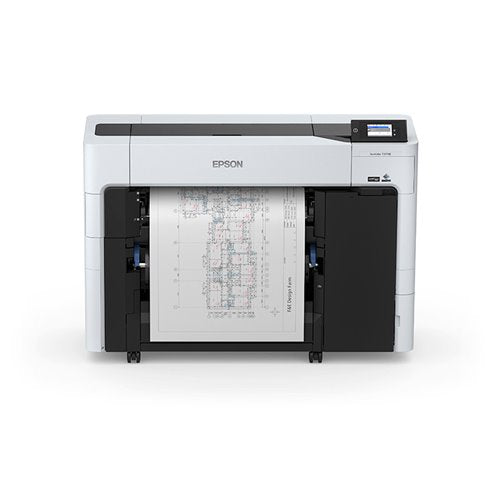

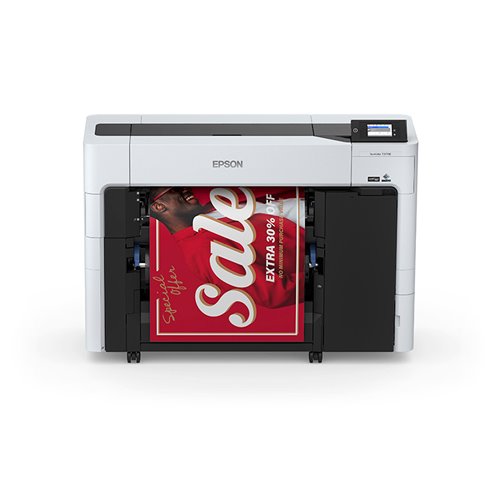

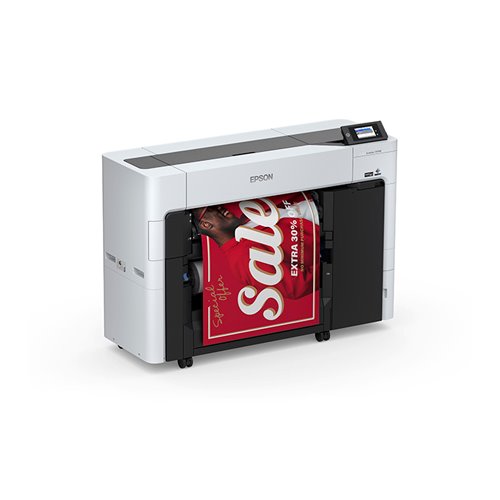

Epson SureColor T3770E 24-Inch Large-Format Single-Roll CAD/Technical Printer

Epson delivers a first-of-its-kind design that shatters expectations and redefines capability, versatility and efficiency for its class: the SureColor^® T3770E. With a compact footprint and all-front operation, the T3770E fits where other printers don’t. It’s designed for outstanding quality, sharpness and speed, producing technical drawings at production-class speeds with A1/D-size prints in as little as 16 seconds. Its innovative six-ink set with dedicated Red Ink opens the door to an extraordinary color gamut for a production printer as well as rich red branding colors. And simple, carefree operation combined with new levels of media flexibility helps users do more using less space—all with a low total cost of ownership (TCO). Add it all up, and this is not just a one-of-a-kind printer—it’s the new benchmark in high-speed CAD and graphics.

Note: This printer is designed for use with Epson cartridges only, not third-party cartridges or ink. Learn more about Epson's ink.

• Incredible speed and performance — delivers crisp, detailed, colorful prints using a reliable 2.64" PrecisionCore^® MicroTFP printhead, producing remarkable A1/D-size prints in as little as 16 seconds
• Innovative design fits any workflow — unique flattop design with complete front operation and simple automatic roll loading
• Stunning image quality and precise line detail — vivid UltraChrome^® XD3 Ink with Red Ink produces crisp lines and vibrant colors for graphics, signage, blueprints, documents and more
• Print on a wide range of media for various applications — print on a variety of media, including glossy, technical, bond, matte and specialty medias, and rigid poster board up to 1.5 mm thick
• Easy to use and maintain — configurable 4.3" touchscreen control panel for simple operation, automated routine maintenance and convenient user self-service for long-term operation
• No assembly required — be up and printing in as little as 30 minutes
• Versatile connectivity — high-speed USB 3.0, Gigabit Ethernet or Wi-Fi^® connectivity (2.4 GHz and 5 GHz) options to fit virtually any production workflow
• IT and security features — over 28 IT security features for office or remote office locations, including IC card option for user control and tracking, SSD Encryption and IEEE 802.1x
• Maximize productivity with included Epson^® Software Suite and Epson Cloud Solution PORT² — remotely manage and monitor your printer fleet from convenience of your laptop or smart device

• SureColor T3770E Printer
• Full Set of Initial Ink Cartridges (240 mL C, M, Y, MK, PK, R)
• Maintenance Box (Pre-Installed)
• Borderless Maintenance Box
• 1 Roll Media Adapter (Pre-Installed)
• Start Here Poster
• AC Power Cable

• Printing Technology PrecisionCore MicroTFP 6-channel drop on demand
• Ink Type UltraChrome XD3 pigment ink; 6-color with Red (Cyan, Magenta, Yellow, Red, Matte Black, Photo Black)
• Nozzle Configuration: 9,600 nozzles (1,600 x 6 channels)
• Droplet Technology Smallest Droplet Size: 3.5 picoliters; Variable Droplet Technology can produce up to 3 different sizes per nozzle
• Maximum Resolution 2400 x 1200 dpi
• Real-Time Black Ink Selection Dedicated Photo and Matte Black Ink channels selected automatically based on media type
• Print Speed A1/D Size (Plain Paper): 16 sec A1/D-Size (Glossy): 65 sec (Speed Mode)
• Printer Language/Drivers Epson Professional Print Drivers (included), Epson ESC/P® raster, HP-GL/2, HP RTL
• Memory (Built-In): 4 GB

• Minimum Roll Width: Minimum 10"
• Maximum Roll Width: Up to 24" 2" or 3"
• Core Diameter: User-adjustable roll media spindles
• Roll Cutting: High-speed internal rotary cutter; auto or manual (replaceable)

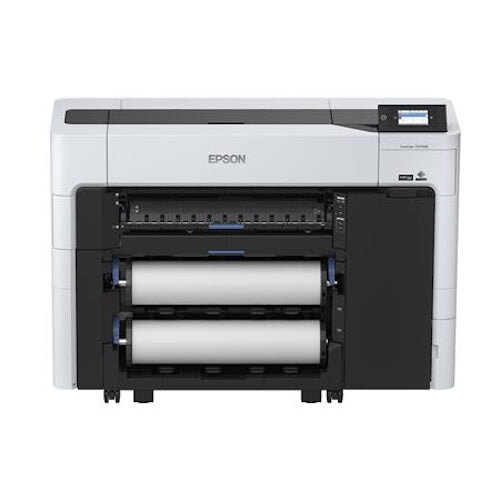

• Single-Roll or Double-Roll Option
• Maximum Roll Diameter: Up to 6.69"
• Maximum Roll Weight: 27 lb Roll
• Media Thickness: 0.07 mm to 0.8 mm

• Single Sheet, Front or Rear Loading: Up to 24" wide
• Minimum Sheet: Width 8"
• Minimum Sheet Length: 8" Sheet
• Media Max: Thickness Up to 1.5 mm (rigid posterboard)

• Dimensions (W x D x H) 54" x 20" x 38" (storage and operating)
• Dimensions (W x D x H) 54" x 33" x 38" (paper basket extended)
• Weight 254 lb Acoustic
• Noise Level Operating: 49.6 dBA
• Sleep: 6.6 dBA
• Temperature Operating: 50 ˚F to 95 ˚F (10 ˚C to 35 ˚C)
• Storage: -4 ˚F to 104 ˚F (-20 ˚C to 40 ˚C)
• Relative Humidity Operating: 20%–80% (no condensation) Storage: 5%–85% (no condensation)
• Voltage: AC 110 V–240 V
• Frequency: 50 Hz–60 Hz
• Current: 3.4 A
• Power Consumption Printing: Approx. 75 W
• Ready: Approx. 32 W
• Sleep: 2 W
• Power Off (Stand By): 0.3 W
• Limited Warranty and Service Standard 1-year usually next-business-day on-site repair with included phone support Monday through Friday

• Technical Data Sheet
