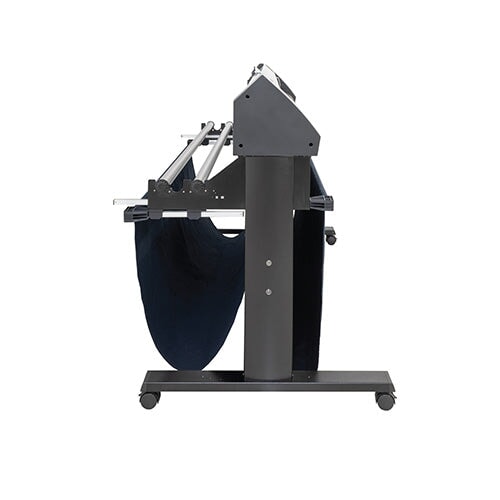

Graphtec CE8000 Series Vinyl Cutters

NEW ARRIVAL

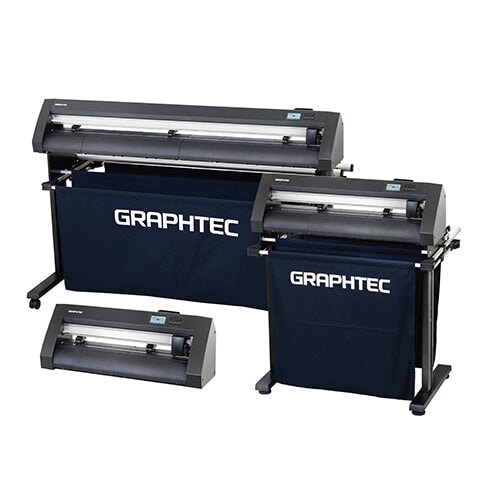

The Graphtec CE8000 Series, a cutting-edge solution for enhancing production efficiency across industries like Signage, Vinyl Graphics, DTF Apparel, PRINT & CUT, POP & Packaging, and Automotive Markets.

Building on the success of its predecessor, the CE7000, the CE8000 features Enhanced Rigidity for improved material feeding and cutting precision. The addition of Wireless LAN increases flexibility, offering seamless connectivity in various workspaces. Plus, the trusted Advanced Registration Mark Sensing System (ARMS) continues to deliver accurate, reliable print-and-cut operations.

• Advanced Registration Mark Sensing System (ARMS 9.0): Enhances precision by automatically detecting registration marks, making it ideal for contour cutting around printed graphics.
• Wireless LAN Capability: Offers flexibility by allowing wireless connectivity, so the plotter can be placed anywhere within the network range.

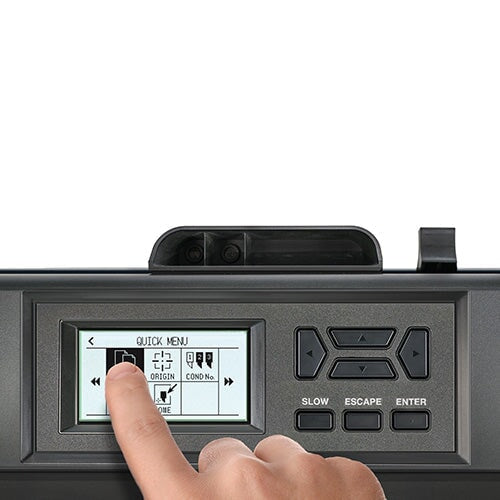

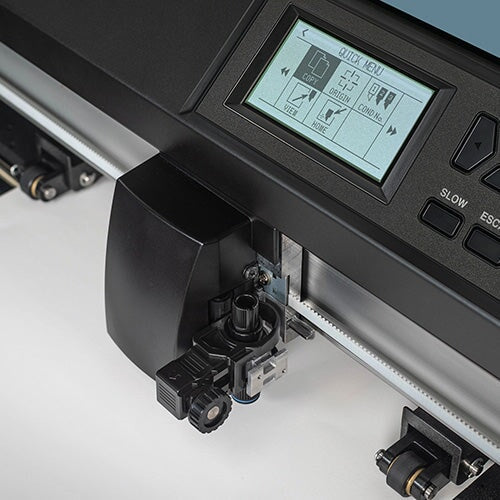

• Intuitive Touch Panel: Provides a user-friendly interface for quick operation adjustments, improving efficiency in production environments.
• Super-Fast Processing: Equipped with a high-speed processor that increases cutting speed and responsiveness, enabling quicker job completions.
• USB Offline Operation: Allows users to operate the plotter directly from a USB drive, eliminating the need for a constant computer connection.
• Adjustable Push Rollers: Ensures smoother material feeding, reducing errors, and ensuring greater accuracy with different types of media.

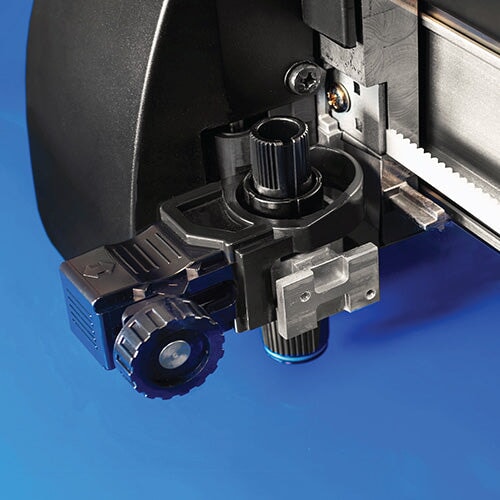

• Multiple Tool Compatibility: Supports a variety of cutting tools, including pens, making it versatile for different applications like drawing or cutting thick materials.
• Fan-Assisted Media Support System: Prevents media from shifting during operation, ensuring smoother cutting, particularly with longer materials.

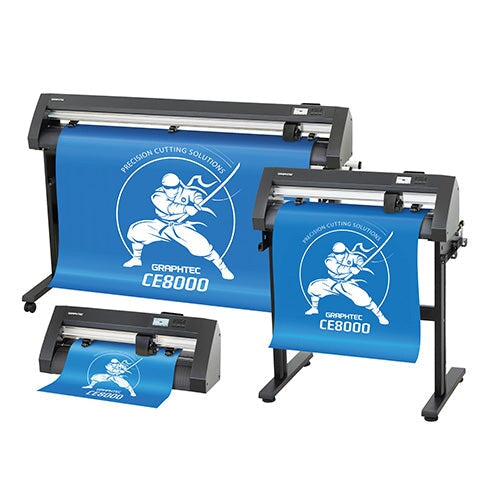

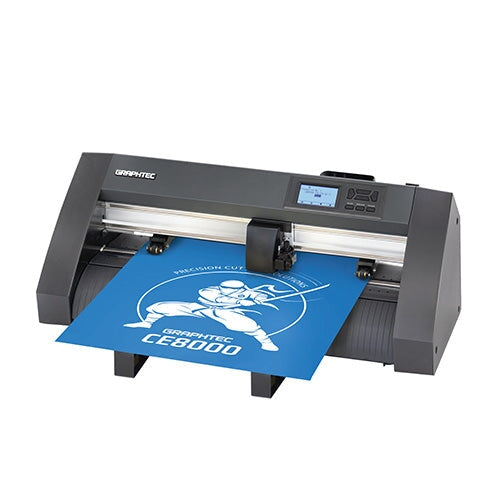

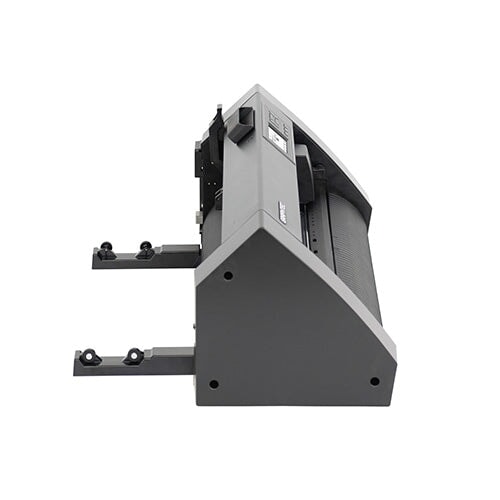

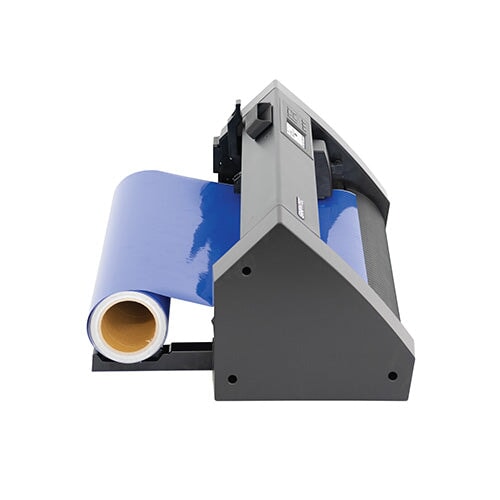

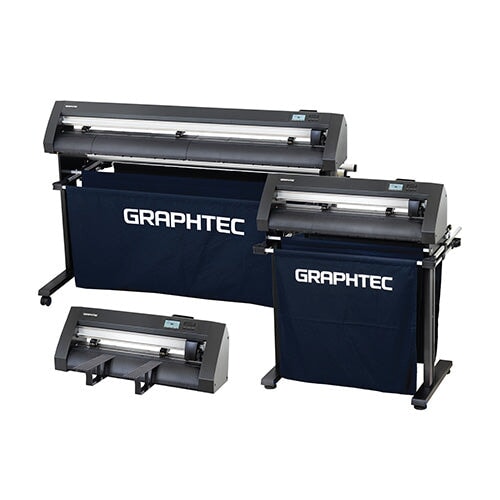

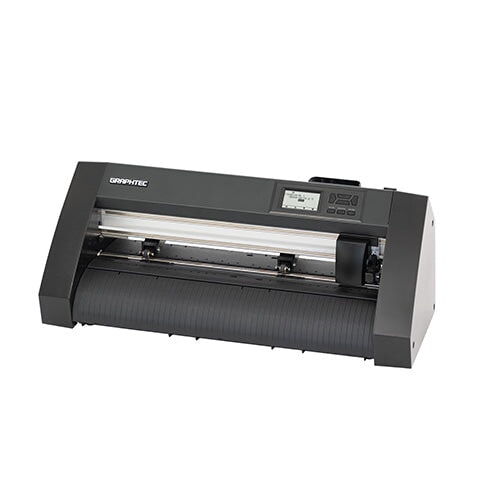

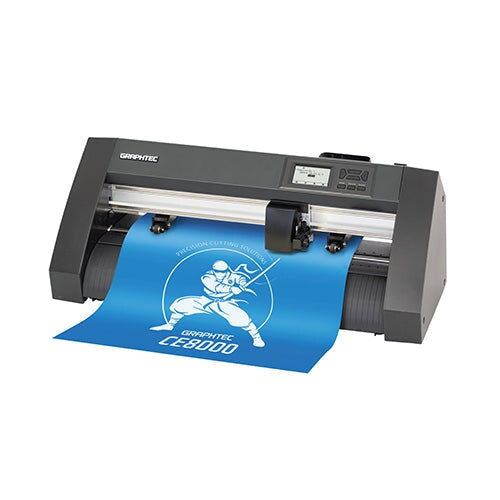

• 15 inches (no stand included)

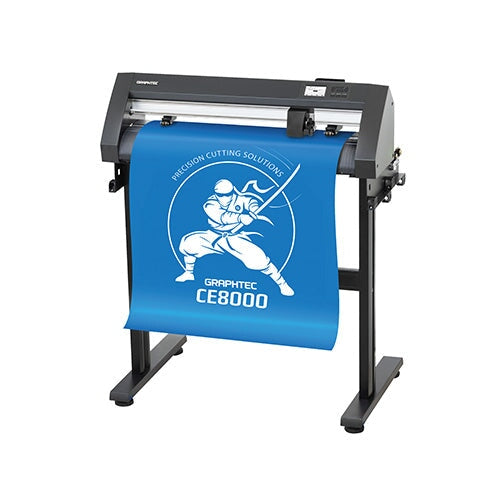

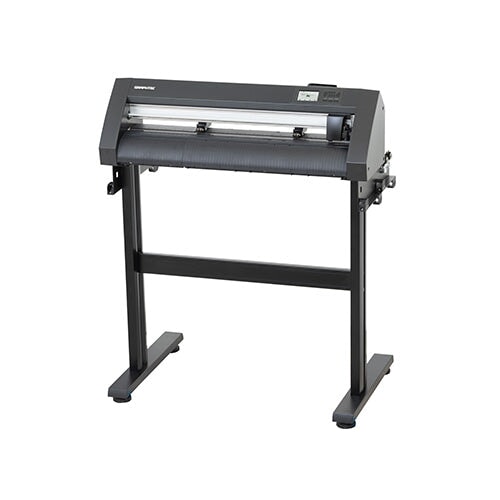

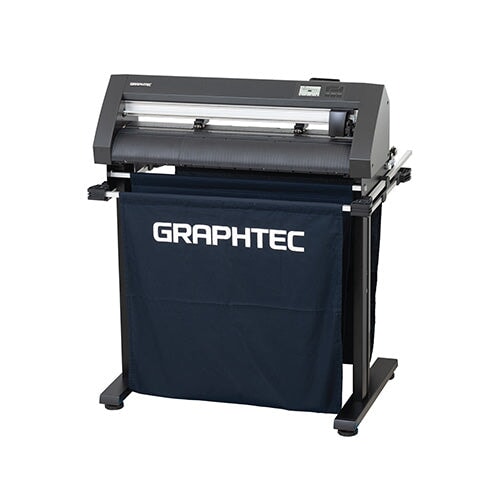

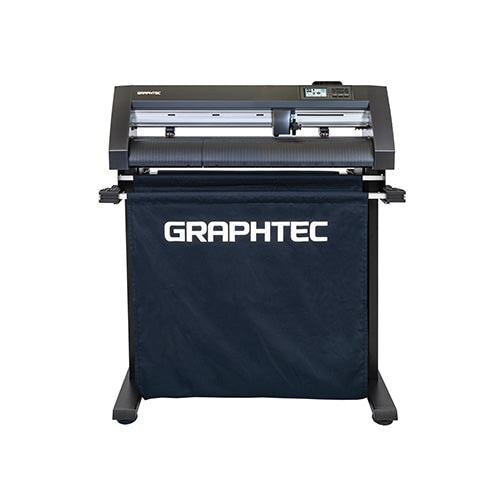

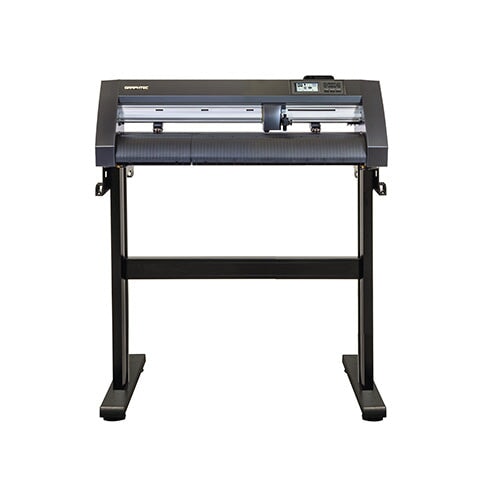

• 24 inches (stand included)

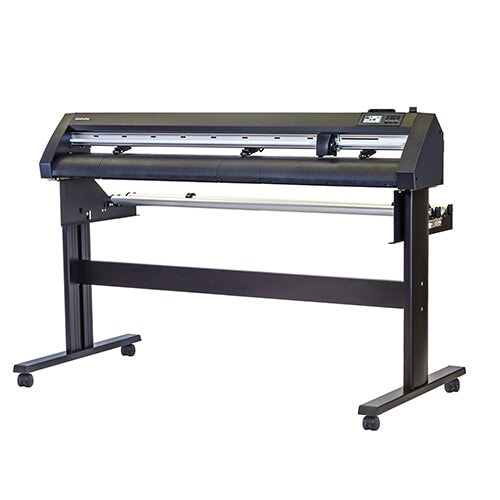

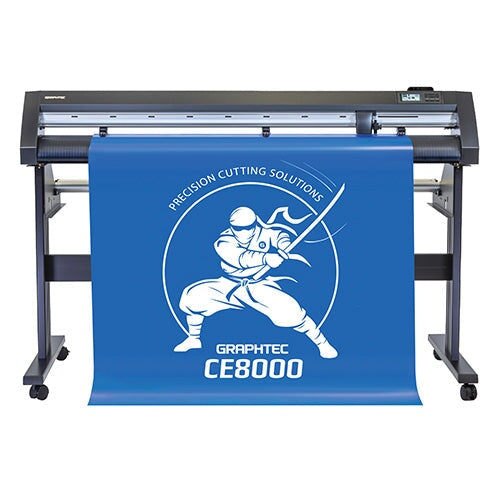

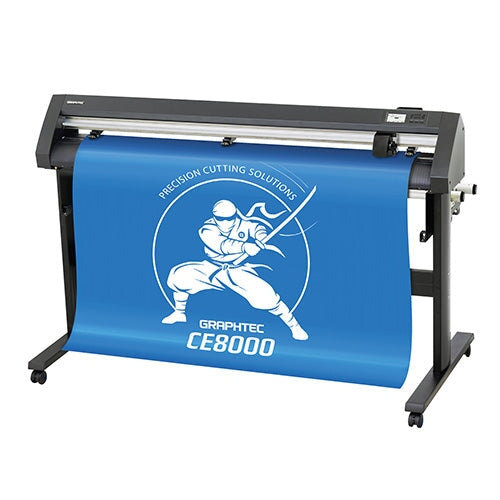

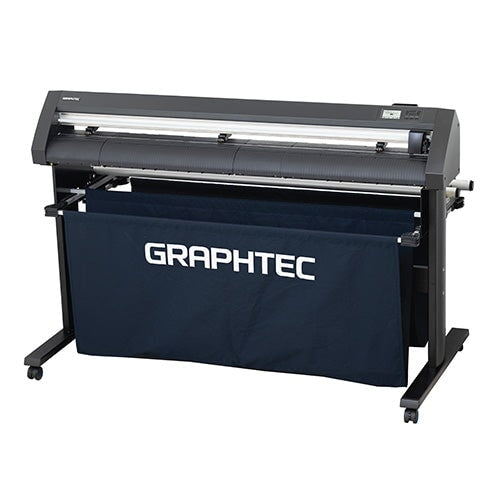

• 40 inches (stand included)

• Configuration: Grit roller with digital servo drive system
• Maximum cutting area (W x L): 15" x 164'
• Cutting area of guaranteed accuracy: 14" x 79"
• Mountable media width: 2", 19"
• Number of push rollers: 2 rollers
• Maximum cutting speed: 24"/s, in all directions
• Maximum acceleration: Max. 21.2 m/s2 (2.2G) at 45º direction
• Maximum cutting force: 4.41 N (450 gf)
• Minimum character size: Approx. 5 mm (0.016") alphanumeric (depending on character font and type of media)
• Programmable resolution: GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm
• Repeat-ability: Max. 0.1 mm in plot up to 2 m (*1)
• Mountable number of tools: 1 tool
• Blade type: Supersteel
• Pen type: Oil-based ballpoint, Water-based fiber-tip pen
• Media type: Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 25 mil (.63mm) Stencil material

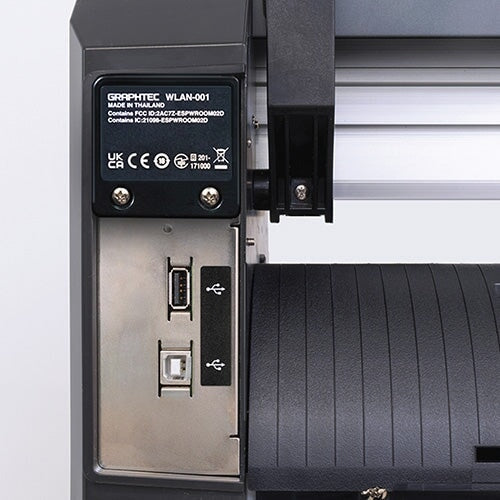

• Interface: USB 2.0 (Full Speed) • Wireless LAN • 10BASE-T/100BASE-TX
• Buffer memory: 2 MB
• Command sets: GP-GL / HP-GL™ (Set by command or auto-detect)
• Display: Touch Panel Screen (240-dot x 128-dot), supports 10 languages
• Registration Mark Sensing System: Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation, 4-points axis alignment, Auto mark detection
• Alignment accuracy: Maximum 0.3 mm with printed image (when reading specified registration marks)
• Power source: 100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz
• Power consumption: 120 VA
• Operating environment: 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
• Guaranteed accuracy environment: 16 to 32 ºC, 35 to 70 % R.H. (non-condensing)
• External dimensions (W x D x H): Approx. 26.65" x 17.76" x 10.5"
• Weight (Approx.): 24.25 lbs (11kg)
• Compatible Operating Systems: Windows 11 /10 / 8.1 / 64-bit editions, Mac OS 10.2 (Sierra) to 13 (Ventura)
• Included software (download): Graphtec Studio 2, Cutting Master 5 for Windows, and Mac
• Compatibility Standards - Safety: PSE, UL/cUL, CE mark
• Compatibility Standards - EMC: VCCI Class A, FCC Class A, CE mark

• Configuration: Grit roller with digital servo drive system
• Maximum cutting area (W x L): 24" x 164'
• Cutting area of guaranteed accuracy: 23” × 79” / 23”× 16.4’ *1 / *2
• Mountable media width: 2", 30"
• Number of push rollers: 2 rollers
• Maximum cutting speed: 36"/s, at 45º direction
• Maximum acceleration: Max. 21.2 m/s2 (2.2G) at 45º direction
• Maximum cutting force: 4.41 N (450 gf)
• Minimum character size: Approx. 5 mm (0.016") alphanumeric (depending on character font and type of media)
• Programmable resolution: GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm
• Repeat-ability: Max. 0.1 mm in plot up to 2 m (*1)
• Mountable number of tools: 1 tool
• Blade type: Supersteel
• Pen type: Oil-based ballpoint, Water-based fiber-tip pen
• Media type: Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 25 mil (.63mm)
• Stencil material Interface: USB 2.0 (Full Speed) • Wireless LAN • 10BASE-T/100BASE-TX
• Buffer memory: 2 MB
• Command sets: GP-GL / HP-GL™ (Set by command or auto-detect)
• Display: Touch Panel Screen (240-dot x 128-dot), supports 10 languages
• Registration Mark Sensing System: Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation, 4-points axis alignment, Auto mark detection
• Alignment accuracy: Maximum 0.3 mm with printed image (when reading specified registration marks)
• Power source: 101 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz
• Power consumption: 121 VA Operating environment: 11 to 35 ºC, 35 to 75 % R.H. (non-condensing)
• Guaranteed accuracy environment: 17 to 32 ºC, 35 to 70 % R.H. (non-condensing)
• External dimensions (W x D x H): Approx. 35.5" x 23" x 42.4"
• Weight (Approx.): 46.3 lbs (21kg)
• Compatible Operating Systems: Windows 11 /10 / 8.1 / 64-bit editions, Mac OS 10.2 (Sierra) to 13 (Ventura)
• Included software (download): Graphtec Studio 2, Cutting Master 5 for Windows, and Mac
• Compatibility Standards - Safety: PSE, UL/cUL, CE mark
• Compatibility Standards - EMC: VCCI Class A, FCC Class A, CE mark

• Configuration: Grit roller with digital servo drive system
• Maximum cutting area (W x L): 50" x 164'
• Cutting area of guaranteed accuracy: 50”×79” / 49”×16.4’ *1 / *2
• Mountable media width: 2",54"
• Number of push rollers: 3 rollers
• Maximum cutting speed: 39"/s, at 45º direction
• Maximum acceleration: 45.60' (13.9 m/s2), at 45º direction
• Maximum cutting force: 4.41 N (450 gf)
• Minimum character size: Approx. 5 mm (0.016") alphanumeric (depending on character font and type of media)
• Programmable resolution: GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm Repeat-ability: Max. 0.1 mm in plot up to 2 m (*1)
• Mountable number of tools: 1 tool
• Blade type: Supersteel
• Pen type: Oil-based ballpoint, Water-based fiber-tip pen
• Media type: Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 25 mil (.63mm)
• Stencil material Interface: USB 2.0 (Full Speed) • Wireless LAN • 10BASE-T/100BASE-TX
• Buffer memory: 2 MB Command sets: GP-GL / HP-GL™ (Set by command or auto-detect)
• Display: Touch Panel Screen (240-dot x 128-dot), supports 10 languages
• Registration Mark Sensing System: Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation, 4-points axis alignment, Auto mark detection
• Alignment accuracy: Maximum 0.3 mm with printed image (when reading specified registration marks)
• Power source: 102 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz
• Power consumption: 122 VA Operating environment: 12 to 35 ºC, 35 to 75 % R.H. (non-condensing)
• Guaranteed accuracy environment: 18 to 32 ºC, 35 to 70 % R.H. (non-condensing)
• External dimensions (W x D x H): Approx. 65" x 32" x 42.3"
• Weight (Approx.): 106 lbs (40kg)
• Compatible Operating Systems: Windows 11 /10 / 8.1 / 64-bit editions, Mac OS 10.2 (Sierra) to 13 (Ventura)
• Included software (download): Graphtec Studio 2, Cutting Master 5 for Windows, and Mac
• Compatibility Standards - Safety: PSE, UL/cUL, CE mark
• Compatibility Standards - EMC: VCCI Class A, FCC Class A, CE mark

• CE8000 Specsheet
