Stahls' Hotronix® Dual Air Fusion IQ® Heat Press

Stahls  |  SKU: HTEQ-XRF2

$8,150.00
Flat rate
multi-qty message
In stock
DESCRIPTION

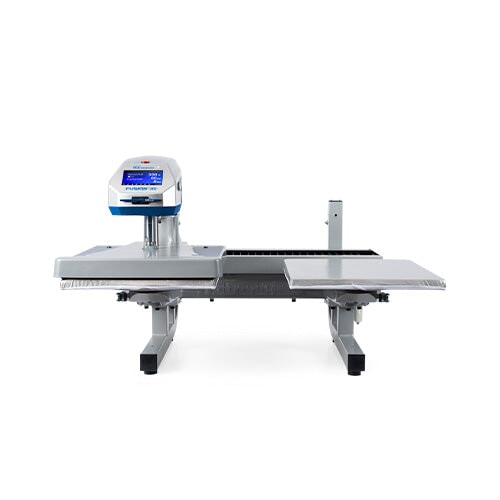

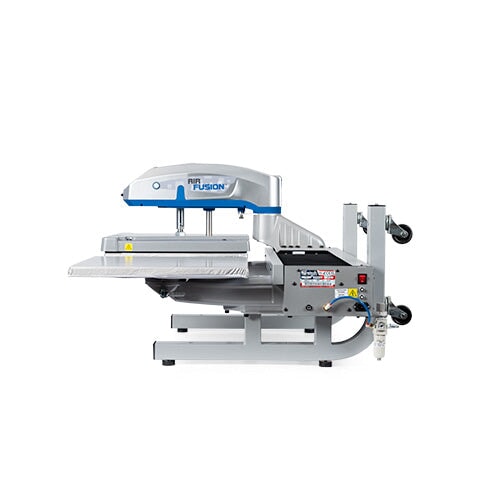

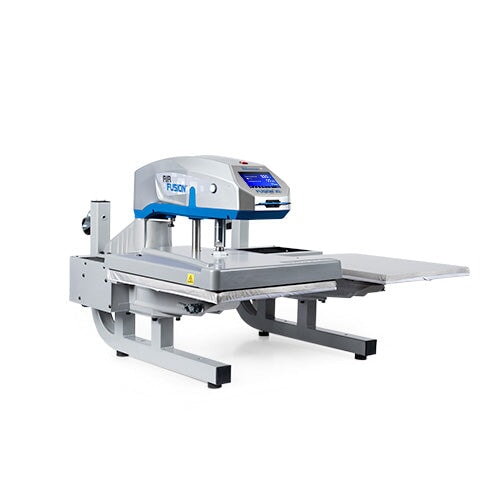

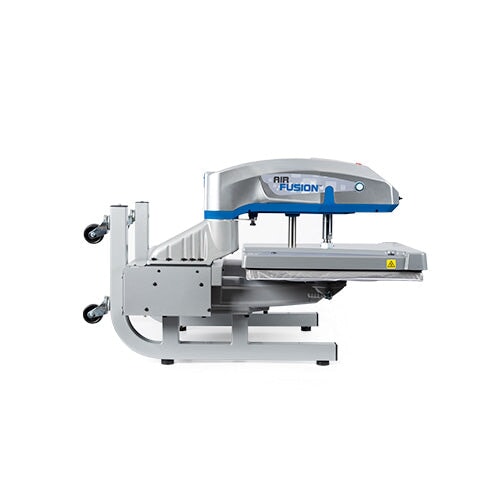

The Dual Air Fusion IQ® Heat Press is built for the ultimate heat printing efficiency. This heat transfer machine offers the functionality of two Air Fusion IQ® presses with smooth, effortless operation controlled by the push of a button and tap of a foot pedal. The upper platen moves between two heat printing stations, allowing operators to prepare garments on one station while the other is being pressed.

Double your heat printing capacity and make the most of your time. Innovation meets application with IQ® Heat Presses. Register your Dual Air Fusion IQ® Heat Press to access the Hotronix® Online Portal, where you can manage users, generate usage reports, and troubleshoot technical issues.

*Requires air compressor (not included) with a minimum of 1 horsepower, 8-gallon hold tank, 120 PSI, using 2.6 CFM.

Recommended table size: 24” x 36” x 28” with 30” height

APPLICATIONS

The Dual Air Fusion IQ® Heat Press is designed for versatility, making it ideal for various heat transfer applications. Its dual-station design and automated controls allow seamless workflow for high-volume printing, supporting:

  • DTG (Direct-to-Garment): Streamline operations by using one station for pre-treatment and the other for post-curing. This configuration enhances efficiency for large DTG runs.
  • DTF (Direct-to-Film): Perfect for producing high-quality transfers, ensuring precise temperature and pressure control for flawless prints.
  • Heat Transfer Vinyl (HTV): Achieve consistent pressure and temperature across substrates, ideal for vinyl graphics on a range of materials.
  • Sublimation: Suitable for polyester garments and items that require vibrant, full-color transfers.
  • Screen-Printed Transfers: Capable of handling both hot and cold peel transfers, making it an excellent choice for quick turnaround custom apparel.
FEATURES
    • Touch Screen Controls: Allows programming each station to work independently or together.
    • Position-Based Recipe Heating (PBR): Ensures both stations operate in unison or independently.
    • Live Digital Readout: Displays time, temperature, and pressure in real-time.
    • Two Quick Slip Lower Platen Protectors: Included for extra platen durability.
    • Compatible with Quick Change Platens: Swap platens easily for various applications.
    • Performance Monitoring: Access reports for total impressions, active/idle time, and cycle averages.
    • Self-Diagnostics: Built-in troubleshooting and maintenance monitoring.

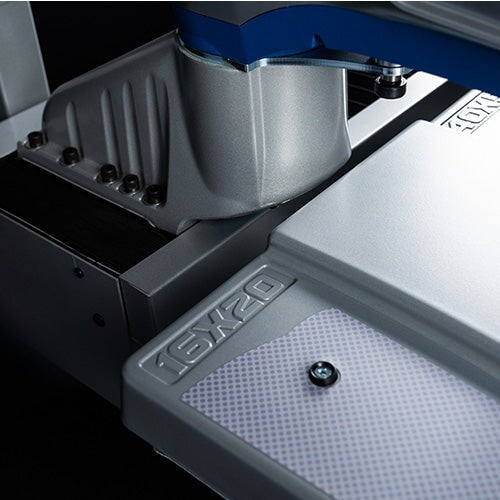

    • Dual 16” x 20” Quick Change Platens: Standard configuration for most applications.
    • Auto Adjust Pressure™: Automatically adjusts pressure across four settings for consistent results.
    • Corrosion-Free Base and Top Assemblies: Die-cast and built to last.
    • Quiet Operation: Center-driven rodless transmission ensures smooth, silent operation.
    • Multiple Modes: Operates in full-auto, semi-auto, or manual modes.
    • Threadability™: Allows printing on different areas of the garment (front, back, and sides).
    • Heavy Pressure Support: Up to 120 PSI for tough applications.
    • Optional Smaller Platens: Available for more specialized needs.
    • Made in the USA: High-quality materials and assembly.
    • Premier Warranty: Industry-leading coverage for peace of mind.
    PRODUCT SPECS
    • 240 v; 15 amps; 3500 w
    • Must have designated circuit breaker
    • Actual Weight: 260 lbs
    • Shipping Weight: 410 lbs
    • Dimensions: 38" x 38" x 26"
    • Shipping Dimensions: 45" x 45" x 30"
    WARRANTY
    • Lifetime Warranty on Heating Element
    • 5 yr on Framework
    • 2 yr on Circuit board
    • 1 yr parts/labor
