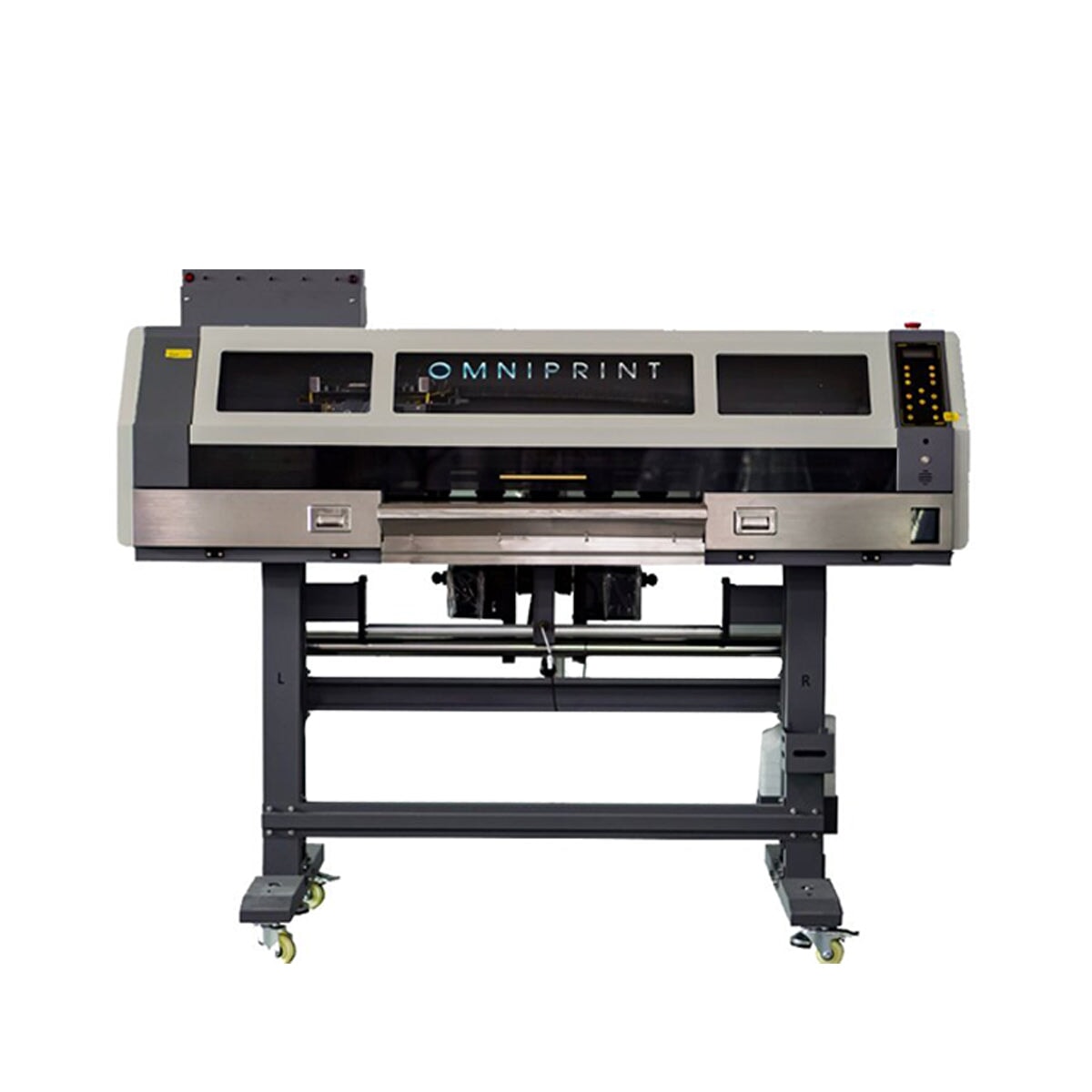

OmniDTF 24 Direct to Film (DTF) Printer Package - 24in

NEW ARRIVAL

The OmniDTF 24 Direct To Film Printer is designed for those seeking to elevate their printing capabilities with larger, more diverse designs. Its 24-inch print area and high-speed output of 80-120 linear feet per hour make it ideal for high-volume production. Equipped with advanced i3200 print heads, it delivers superior, high-resolution prints with precision and reliability. The user-friendly OmniDTF interface, efficient heating system, and wide connectivity options ensure smooth operation, while its compatibility with Gamut Hybrid Water-Based DTF Ink offers vibrant and consistent results.

Print Speed: Approx. 120 - 12x12in transfers per hour.

• Increased Print Area: Larger 24-inch print area for bigger and more diverse designs.
• High-Speed Printing: Maintains high speed of 80-120 linear feet per hour.
• High Volume: Potentially higher print output due to increased print area.
• Superior Print Quality: Maintains high-resolution options (720x1800, 720x2400, 720x3600).
• Advanced Print Heads: Equipped with two or 4 i3200 print heads for precision and reliability.
• User-Friendly Interface: OmniDTF User Interface for easy operation.
• Efficient Heating System: Multi-zone film preheating and platen heating controls.
• Wide Connectivity: Supports both Ethernet and USB connections.

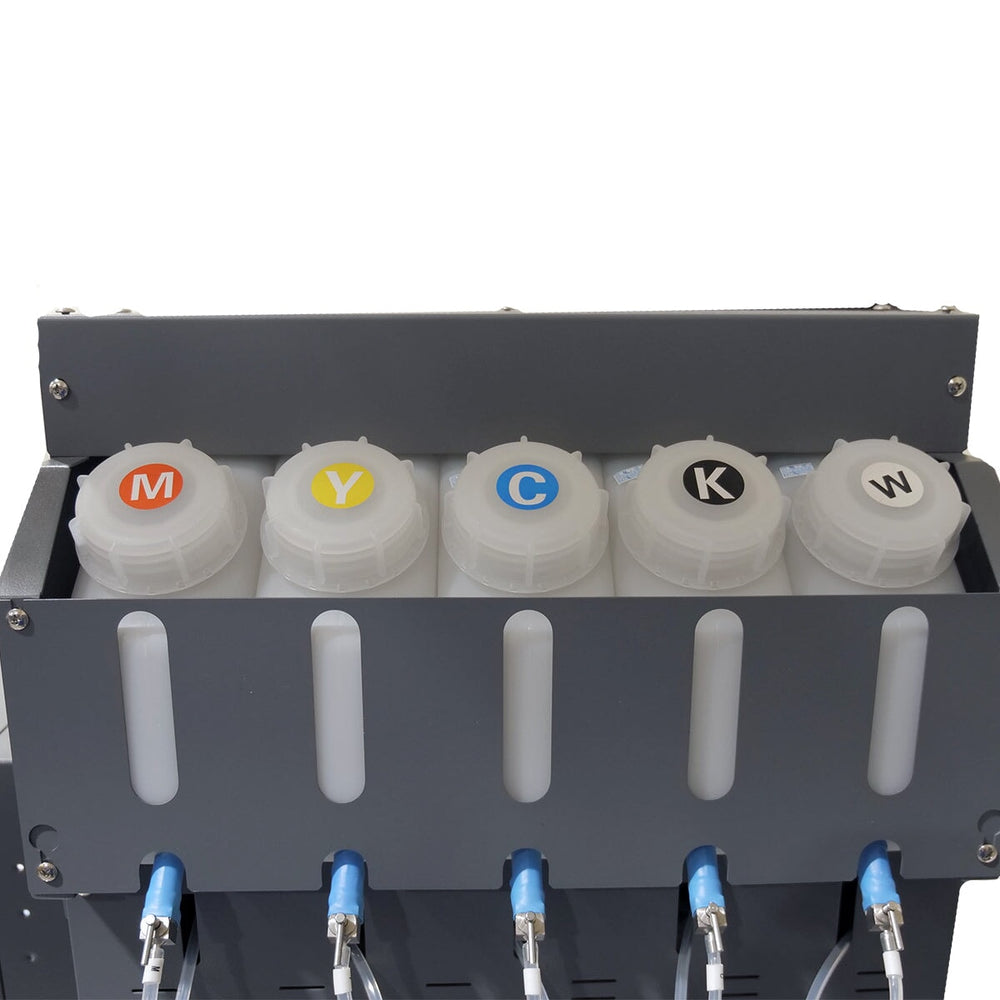

• Ink Compatibility: Works with Gamut Hybrid Water-Based DTF Ink.
• Reliable Power: Requires 110V with surge protection for warranty.
• Versatile Application: Ideal for larger scale printing projects and higher productivity.

• Printing speed : 80-120 linear feet/hour (720x1800 4pass)
• Prints per hour (estimated) : 120 prints per hour (11X11 2 UP per foot)
• Print resolutions: 720 x 1800, 720x2400, 720x3600
• Supported media types : - Omni Direct Film Hot Peel
• Rip Software : Omni DirectRip DTF
• Ink Type Compatibility: Direct Ink DTF Plus - Water Based DTF Ink (e.g., CMYK + White)
• Connectivity : Ethernet/USB
• Print size : Large 24" Print Area
• Print Heads : (2) or (4) i3200- (Precision Core Technology)
• User Interface : OmniDTF User Interface
• Film Heaters : Multi Zone Film preheating and platen heating controls
• Power Requirements - Printer : 110V 15 Amps, 1.61 kw, Dedicated circuit , Surge Protection Required for warranty
• Machine size: 74" x 65" x 29"
• Machine Weight: 580lbs
• Curing Oven Size: 74" x 65" x 29
• Curing Oven Weight: 650lbs
• Power requirements - Oven: 220V, 20A
• Climate control: Temp max 75 degrees F and 40 - 60% humidity
• Venting: to the outside with an exhaust fan or vacuum filtration system.
• PC Recommendations: OS Windows 10® Pro (64bit) or Windows 11® Pro (64bit)
• CPU Intel® Core™ i7-8th Gen or newer
• Memory 8GB or more
• HDD 256 GB SSD or more
• Interface: Ethernet, USB C/USB 3.0

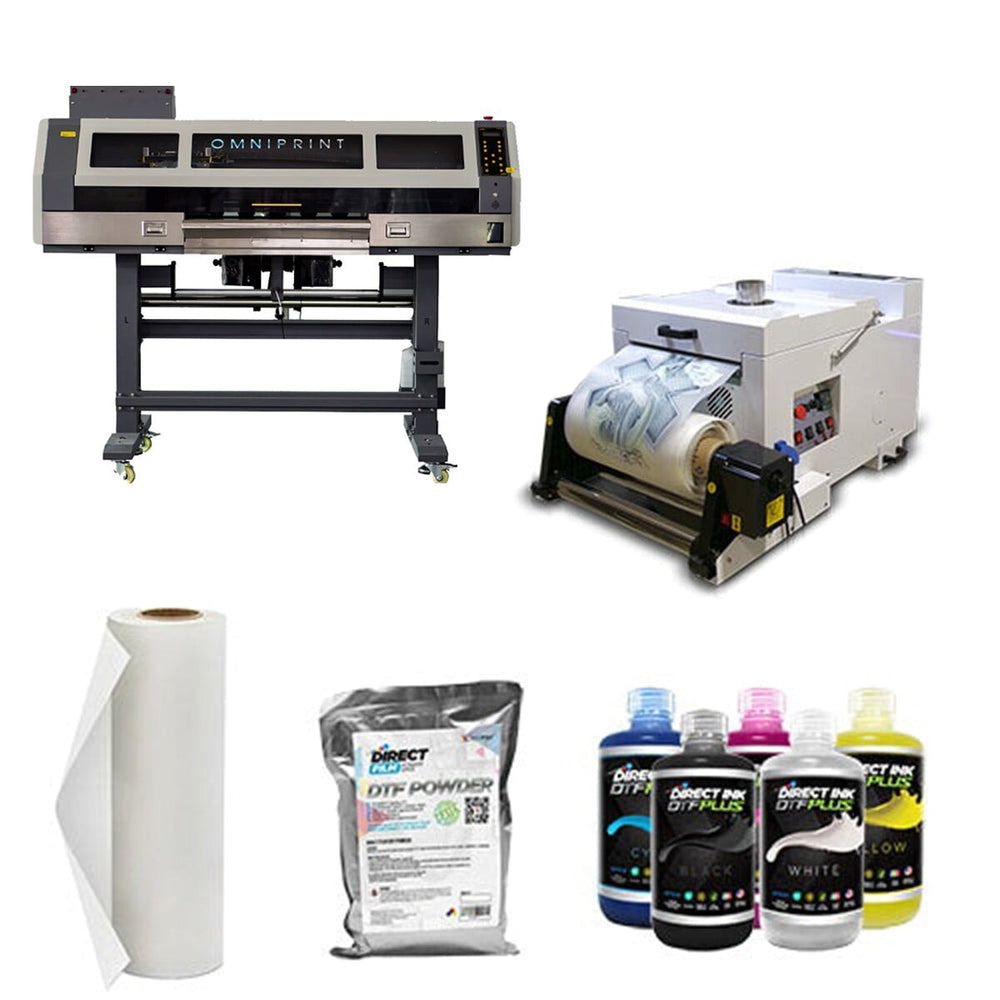

• OmniDTF 24 2-Head Direct to Film (DTF) Printer
• 24" Curing Oven
• Omni DTF Software
• 1Starter Ink Set (CMYK+W) - 1 liter
• 1 Roll of Film
• DTF Powder - 1kg
• Super Cleaner - 500ml
• Swabs
• Grease
• Humidity Gauge
• 8oz Bottle

• Windows® 10 (64-bit) or later


• USB Printer Cable
• Silicone Parchment Paper or Heat Resistant Non-Stick Sheet
• Art program for creating print ready images (Adobe, CorelDraw)
• UPC Battery backup

• Heat Press 16" x 20" recommended

• Time and planning for a learning curve

• OmniDTF 24 Spec Sheet (Coming Soon)
