Riley Hopkins 360 Screen Printing Shop Package

Are you serious about your screen printing business and craft? Are you consistently receiving large orders and multicolor jobs? Are you frustrated with your current setup because it can’t keep up with your customers’ demands?

If your business is becoming a large production print shop, then the Riley Hopkins® 360 Screen Printing Shop Package is for you. Getting a kit makes your life simple. You could pick and choose supplies and equipment, but that takes a lot of time. With a few clicks, you have everything you need to upgrade a print shop.

The kit has everything you need — a press, flash dryer, exposure unit, conveyor dryer, washout booth, screens, squeegees, inks, chemicals, and more. Loaded with top-notch equipment and supplies from brands like Riley Hopkins®, Baselayr®, Sgreen®, and FN-INK™, you can count on producing high-quality prints right from the start.

Investing in a shop package is an easy, economical way to revamp a screen printing business. Kick it into high gear with the Riley Hopkins® 360 Screen Printing Shop Package today.

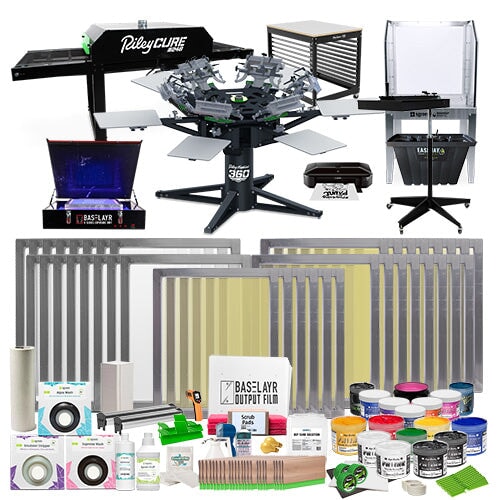

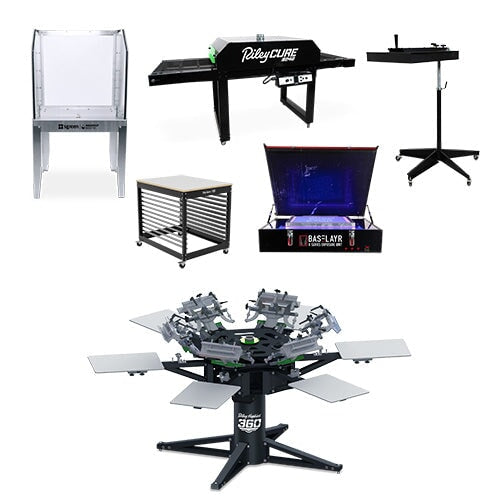

INCLUDED IN KIT

• Riley Hopkins® 360 6-Color, 6-Station Press
• RileyCure 248 Conveyor Dryer
• Riley Hopkins® 18”x18” Flash Dryer
• Baselayr® V2331 LED Exposure Unit
• Sgreen® Washout Booth 33" w/ Backlight
• Canon Pixma ix6820 Film Output Printer Package
• Riley Hopkins® Utility Cart
• Easiway Dip Tank w/Solution

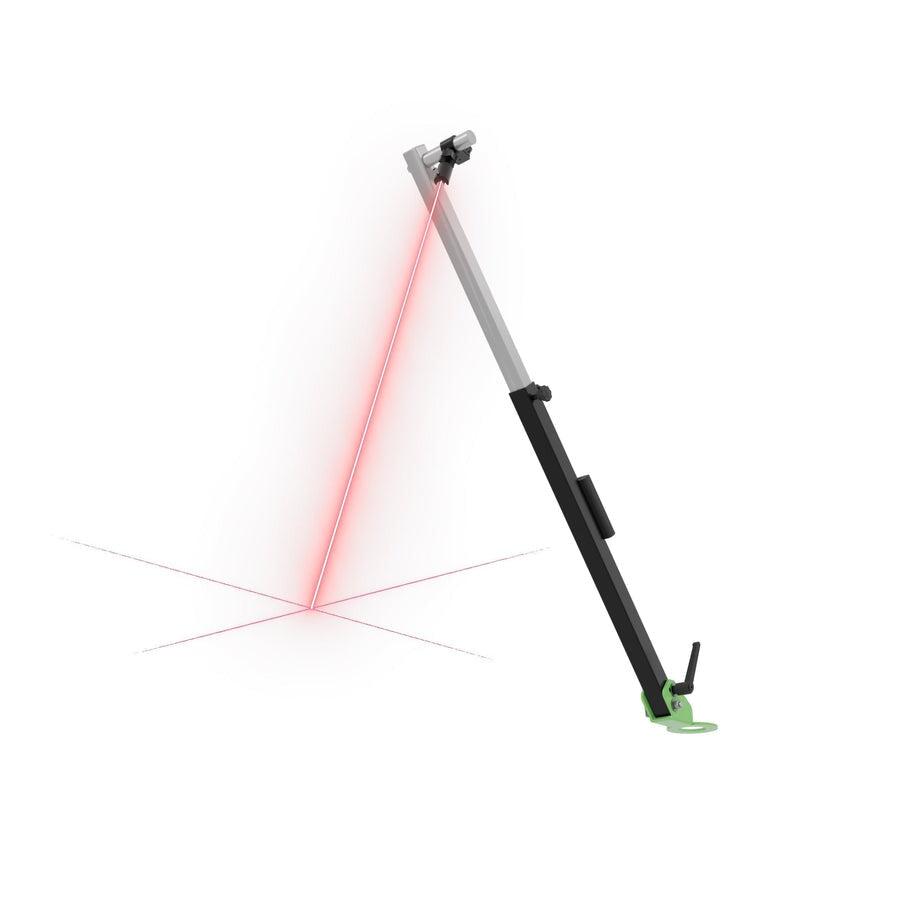

• Laser Guiding System

• Ink Kit
• 2 - Gallons of White FN-INK™
• 2 - Gallons of Black FN-INK™
• 1 - Gallon of Bright Red FN-INK™
• 1 - Gallon of Royal Blue FN-INK™
• 1 - Gallon of Lemon Yellow FN-INK™
• 1 - Gallon of Golden Yellow FN-INK™
• 1 - Gallon of Kelly Green FN-INK™
• 1 - Quart of Navy Blue FN-INK™
• 1 - Quart of Orange FN-INK™
• 1 - Quart of Violet FN-INK™
• 1 - Quart of Light Royal blue FN-INK™
• 1 - Quart of Fuchsia FN-INK™
• 1 - Quart of Pitch Black Green Galaxy Water-Based Ink
• 1 - Quart of Neptune Blue Green Galaxy Water-Based Ink
• Supply Kit
• 8 - Baselayr® 20”x24” 110 White Mesh Aluminum Screens
• 8 - Baselayr® 20”x24” 158 White Mesh Aluminum Screens
• 8 - Baselayr® 20”x24” 196 Yellow Mesh Aluminum Screens
• 8 - Baselayr® 20”x24” 230 Yellow Mesh Aluminum Screens
• 6 - Baselayr® 20”x24” 305 Yellow Mesh Aluminum Screens
• 8 - 12” 70 durometer squeegees
• 8 - 15” 70 durometer squeegees
• 4 - 6” 70 durometer squeegees
• 4 - 8” 70 durometer squeegees
• 1 - Digital laser temperature gun
• 1 - 18” scoop coater
• 1 - 16” scoop coater
• 1 - Roll of FN-INK™ 18”x100yd standard platen tape
• 3 - Rolls of 2”x36yd screen block-out tape
• 2 - Rolls of 2”x110yd white screen tape
• 1 - 300 pack of cleanup cards
• 1 - 100 pack of 13”x19” Baselayr ® Waterproof Film
• 4 - 25-packs of 14”x16” black test pellons
• 4 - 25-packs of 14”x16” white test pellons
• 10 - Goop scoops
• 2 - light-safe bulbs

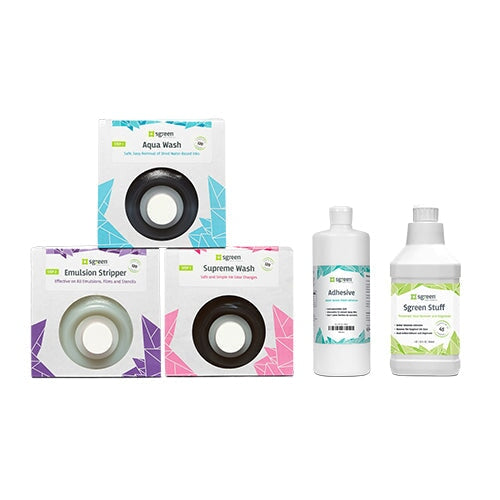

• Chemical Kit
• 1 - Gallon of Baselayr® Long Lasting Emulsion
• 1 - Gallon of Sgreen® Supreme Wash
• 1 - Gallon of Sgreen® Aqua Wash
• 1 - Gallon of Sgreen® Emulsion Stripper
• 1 - Quart of Sgreen® Stuff Degreaser/Dehazer
• 1 - Quart of Sgreen® Water-Based Pallet Adhesive
• 50 - Screen Printing Towels
• 1 - Expert Spot Gun and 1 - Quart of Cured Ink Remover
• 1 - 6 Pack of Scrub Pads + 3 Scrub Handles

PRESS FEATURES AND SPECS

• Sturdy, heavy-duty, lightweight construction
• XYZ Micro Registration
• Adjustable Height Mechanism
• 4-Point Roller Gate
• Made in USA 🇺🇸
• Diameter: 100"
• Base Size: 60"
• Platen Height: 35" - 36"
• Max Platen Size: 30" x 32"
• Max Frame Size (Back Clamp): 25" x 36"
• Max Frame Size (Side Clamp): 23" x 32"
• Color/ Stations: 6 color / 6 station
• Shipping Weight: 602 lbs

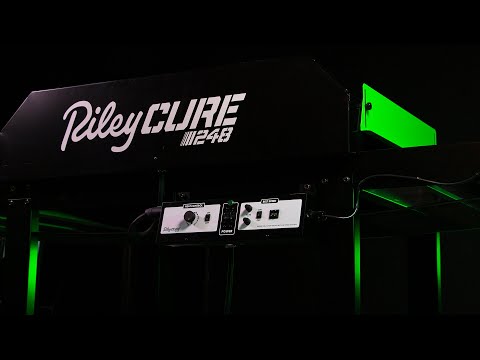

CONVEYOR DRYER FEATURES AND SPECS

• On/off switches for the belt, temperature, and dryer
• Temperature control
• Belt speed control
• Vented exhaust
• Adjustable gates
• Belt tracking guide
• Two locking casters, two rolling casters
• Dry-erase panel to write down specific settings
• 10-foot power cord
• Length: 96”
• Width: 36”
• Belt Width: 24”
• Belt Drive Power: Single Point Power
• Number of Elements: 2
• Heater dimensions: 18”x24”
• Chamber Length: 48”
• Chamber Height: 5”
• Entry/Exit Length: 24”, 24”
• Capacity: 300 shirts per hour
• Wattage: 6500
• Voltage: 240
• Amps: 27
• Plug Type: Nema L6-30P
• Made in USA 🇺🇸

FLASH DRYER FEATURES AND SPECS

• Rotating, adjustable stand
• Locking casters
• 360° rotation
• Powder-coated to prevent rust
• Sturdy, simple design
• 10-foot power cord
• Easy assembly
• 1-year warranty
• Made in USA 🇺🇸
• Watts: 2223
• Volts: 120
• Amps: 18.5
• Heater Size: 18”x22”
• Element Size: 18”x18”
• Plug Type: Nema 5-20P

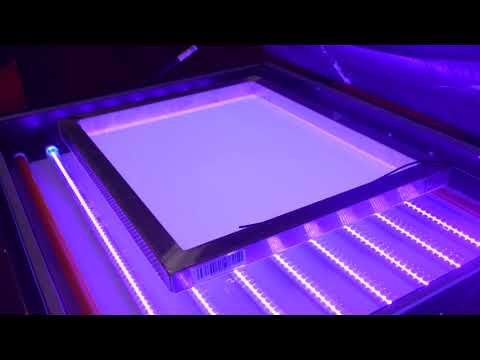

EXPOSURE UNIT DRYER FEATURES AND SPECS

• LED 405nm bulb technology
• Digital timer for accuracy
• Sturdy powder-coated steel construction
• EC power cord with easy access to an on/off switch
• Flexible and durable rubber vacuum blanket
• Heavy-duty gas shocks
• Adjustable vacuum lid clamps
• Optically clear, strong tempered glass
• Two, light-safe T8 LED amber inspection bulbs
• Oil-free vacuum pump
• Includes nylon rope to allow air movement between the blanket and frame
• Unit dimensions: 44"(L) x 32"(W) x 10"(H)
• Optical clear, tempered glass: 31" x 38"
• Max frame size OD: 23" x 31"
• 8 UV T8 LED 405nm tube bulbs designed for screen exposure
• Two, light-safe T8 LED Amber inspection bulbs with dedicated on/off switch
• UV wattage: 320 watts
• Voltage: 115v
• Standard 110v 3-prong plug
• Timer: Digital (1/10 sec. increments)
• Control Panel and timer
• Time adjustment
• Timer on/off
• Vacuum blanket on/off
• Made in USA 🇺🇸

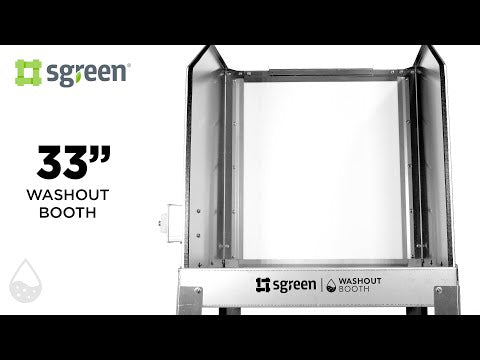

WASHOUT BOOTH FEATURES AND SPECS

• Dimensions: 33”W x 24”D x 63”H
• Easy-to-add backlighting
• Stainless steel basin
• Aluminum siding
• Rubber-protected edges
• Sturdy structure
• Easy cleanup
• Low maintenance
• Minimal space requirement
• Easy to assemble
• Effortless disassembly for transport
• Drain size: 1-½" Female nominal pipe thread drain (AKA 1-½ NPT)
• Maximum frame size is 23x31 (this will allow 4-5 inches on either side)
• Made in USA 🇺🇸

CANON PIXMA IX6820 FILM OUTPUT SPECS

• Prints up to 14.5 ISO ipm* in black, up to 10.4 ISO ipm* in color
• Built-in wireless LAN (802.11b/g/n)
• Up to 9600 x 2400 optimized dpi color resolution
• Apple® AirPrint
• Produces up to 13" x 19" documents and photos
• Prints photos without borders
• ChromeLife100+ system Utilizes enhanced FINE print technology to create long-lasting photos when using select Canon papers and inks (not included).
• Prints on plain, super-high gloss, glossy, semigloss, matte and chlorine-free paper 150-sheet automatic input feeder.
• USB interface

UTILITY CART FEATURES AND SPECS

• Holds up to 300 lbs of inks and print supplies
• Made from laser-cut steel
• Powder-coated black
• The top is white laminate MDF
• The cart includes wheels to allow easy mobility
• Dimension when assembled: 28" W x 36" D x 32" H
• Fits 10: 20" x 24" or 12: 23" x 31" OD frames
• Assembly required (assembly instructions, hardware, and tools are included)
• Made in USA 🇺🇸
