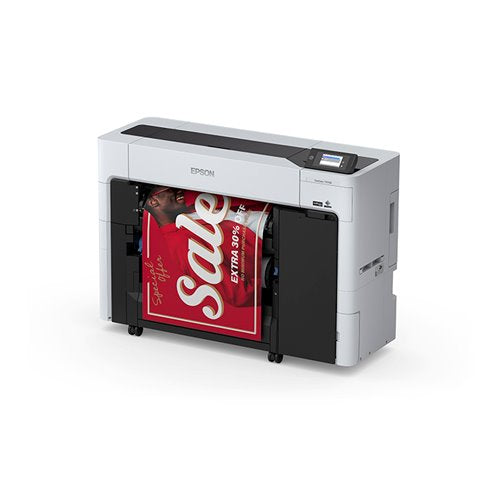

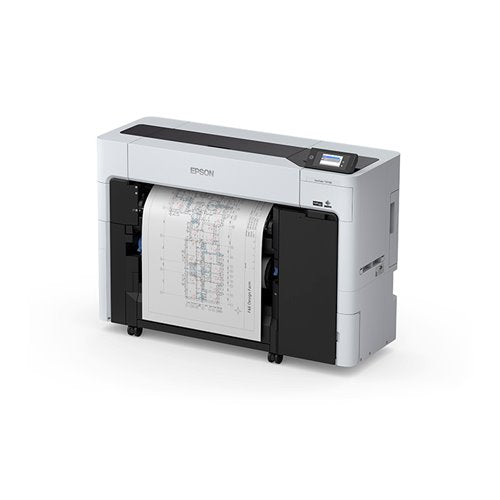

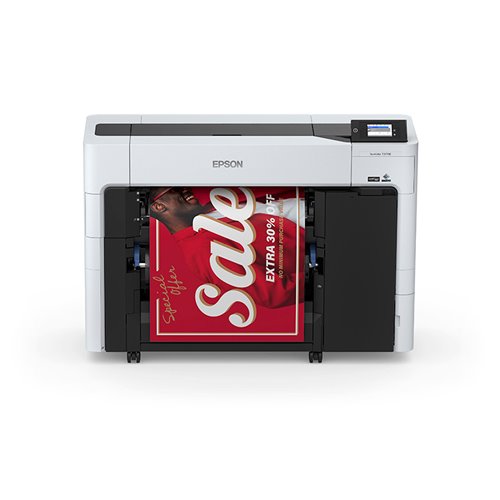

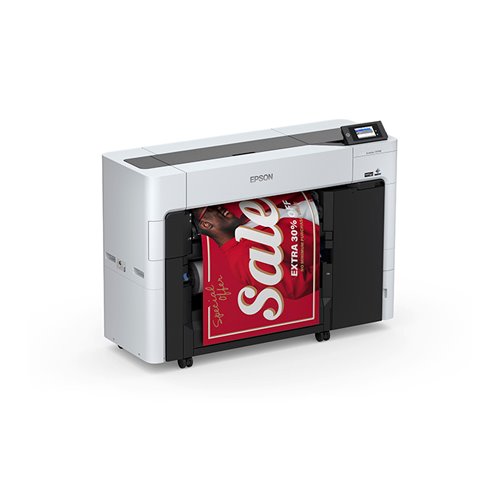

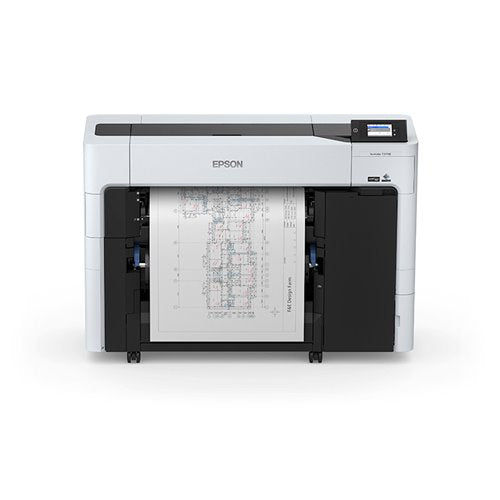

Epson SureColor T3770E 24-Inch Large-Format Single-Roll CAD/Technical Printer

Epson  |  SKU: FOEQ-T3770E
Roll Type
$3,295.00 $3,795.00
Flat rate
multi-qty message
In stock
DESCRIPTION

Epson delivers a first-of-its-kind design that shatters expectations and redefines capability, versatility and efficiency for its class: the SureColor® T3770E. With a compact footprint and all-front operation, the T3770E fits where other printers don’t. It’s designed for outstanding quality, sharpness and speed, producing technical drawings at production-class speeds with A1/D-size prints in as little as 16 seconds. Its innovative six-ink set with dedicated Red Ink opens the door to an extraordinary color gamut for a production printer as well as rich red branding colors. And simple, carefree operation combined with new levels of media flexibility helps users do more using less space—all with a low total cost of ownership (TCO). Add it all up, and this is not just a one-of-a-kind printer—it’s the new benchmark in high-speed CAD and graphics.

Note: This printer is designed for use with Epson cartridges only, not third-party cartridges or ink. Learn more about Epson's ink.

T3770 FEATURES
  • Incredible speed and performance — delivers crisp, detailed, colorful prints using a reliable 2.64" PrecisionCore® MicroTFP printhead, producing remarkable A1/D-size prints in as little as 16 seconds
  • Innovative design fits any workflow — unique flattop design with complete front operation and simple automatic roll loading
  • Stunning image quality and precise line detail — vivid UltraChrome® XD3 Ink with Red Ink produces crisp lines and vibrant colors for graphics, signage, blueprints, documents and more
  • Print on a wide range of media for various applications — print on a variety of media, including glossy, technical, bond, matte and specialty medias, and rigid poster board up to 1.5 mm thick
  • Easy to use and maintain — configurable 4.3" touchscreen control panel for simple operation, automated routine maintenance and convenient user self-service for long-term operation
  • No assembly required — be up and printing in as little as 30 minutes
  • Versatile connectivity — high-speed USB 3.0, Gigabit Ethernet or Wi-Fi® connectivity (2.4 GHz and 5 GHz) options to fit virtually any production workflow
  • IT and security features — over 28 IT security features for office or remote office locations, including IC card option for user control and tracking, SSD Encryption and IEEE 802.1x
  • Maximize productivity with included Epson® Software Suite and Epson Cloud Solution PORT2 — remotely manage and monitor your printer fleet from convenience of your laptop or smart device
IN THE BOX
  • SureColor T3770E Printer
  • Full Set of Initial Ink Cartridges (240 mL C, M, Y, MK, PK, R)
  • Maintenance Box (Pre-Installed)
  • Borderless Maintenance Box
  • 1 Roll Media Adapter (Pre-Installed)
  • Start Here Poster
  • AC Power Cable
PRINTING TECHNOLOGY
  • Printing Technology PrecisionCore MicroTFP 6-channel drop on demand
  • Ink Type UltraChrome XD3 pigment ink; 6-color with Red (Cyan, Magenta, Yellow, Red, Matte Black, Photo Black)
  • Nozzle Configuration: 9,600 nozzles (1,600 x 6 channels)
  • Droplet Technology Smallest Droplet Size: 3.5 picoliters; Variable Droplet Technology can produce up to 3 different sizes per nozzle
  • Maximum Resolution 2400 x 1200 dpi
  • Real-Time Black Ink Selection Dedicated Photo and Matte Black Ink channels selected automatically based on media type
  • Print Speed A1/D Size (Plain Paper): 16 sec A1/D-Size (Glossy): 65 sec (Speed Mode)
  • Printer Language/Drivers Epson Professional Print Drivers (included), Epson ESC/P® raster, HP-GL/2, HP RTL
  • Memory (Built-In): 4 GB
ROLL MEDIA HANDLING
  • Minimum Roll Width: Minimum 10"
  • Maximum Roll Width: Up to 24" 2" or 3"
  • Core Diameter: User-adjustable roll media spindles
  • Roll Cutting: High-speed internal rotary cutter; auto or manual (replaceable)
  • Single-Roll or Double-Roll Option
  • Maximum Roll Diameter: Up to 6.69"
  • Maximum Roll Weight: 27 lb Roll
  • Media Thickness: 0.07 mm to 0.8 mm
SHEET MEDIA HANDLING
  • Single Sheet, Front or Rear Loading: Up to 24" wide
  • Minimum Sheet: Width 8"
  • Minimum Sheet Length: 8" Sheet
  • Media Max: Thickness Up to 1.5 mm (rigid posterboard)
PRODUCT SPECS
  • Dimensions (W x D x H) 54" x 20" x 38" (storage and operating)
  • Dimensions (W x D x H) 54" x 33" x 38" (paper basket extended)
  • Weight 254 lb Acoustic
  • Noise Level Operating: 49.6 dBA
  • Sleep: 6.6 dBA
  • Temperature Operating: 50 ˚F to 95 ˚F (10 ˚C to 35 ˚C)
  • Storage: -4 ˚F to 104 ˚F (-20 ˚C to 40 ˚C)
  • Relative Humidity Operating: 20%–80% (no condensation) Storage: 5%–85% (no condensation)
  • Voltage: AC 110 V–240 V
  • Frequency: 50 Hz–60 Hz
  • Current: 3.4 A
  • Power Consumption Printing: Approx. 75 W
  • Ready: Approx. 32 W
  • Sleep: 2 W
  • Power Off (Stand By): 0.3 W
  • Limited Warranty and Service Standard 1-year usually next-business-day on-site repair with included phone support Monday through Friday
PRODUCT DATA SHEETS
